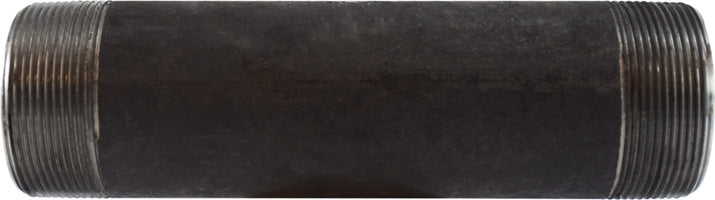

59197SMLS (59-197SMLS) Midland Schedule 80 Extra Heavy Seamless Steel Pipe Nipple - 2" Diameter x 24" Length - Black Steel

59197SMLS by Midland | Schedule 80 Extra Heavy Seamless Steel Pipe Nipple | 2" Diameter x 24" Length | Black Steel

Save $82.09 Save $82.09
$205.22
$205.22 - $205.22
$205.22
$123.13
$123.13 - $123.13
$123.13

Midland Industries
Schedule 80 Extra Heavy Seamless Steel Pipe Nipple - 2" Diameter - Black Steel

Inventory @ Manufacturers Warehouse: 3 Units
Specifications for Variant SKU: 59197SMLS Midland
Shape (Orientation): Straight
Ends Configuration: 2in Male NPT, 2in Male NPT, Some Ends Match
Material(s): Black Steel
Applicable Specs & Approvals: NSF, RoHS Compliant, ASTM A106 Grade B, ASTM A 53, WW-N-351
Features:
  • Black steel protects against oxidation with the varnish coating.
  • Wall Thickness: 0.218"
  • Grade B
  • Test Pressure: 2500 PSI
  • Thread Length 1.06"
Cutting Procedure:
  • All pipe is roller cut. A visual inspection of seams, excessive galvanizing, mid-welds, poor galvanizing, bends, roundness, under and over weight of the pipe is made at the time it is cut. This is done for every length of pipe. Pipe lengths are cut to a tolerance of + or - 1/16" of the actual length.
Threading Procedure:
  • All pipe is chaser thread cut to American Standard Tapered Pipe Thread standards. This is 3/4" taper per foot. Pipe is visually inspected for roundness of threads and other visual faults as it is removed from the threading machine.
Specifications:
  • ASTM A106 Grade B Seamless Pipe
  • ASTM A 53
  • WWN 351
  • Standard NPT Tapered Pipe Threads as per ANSI B 1.20.1 Specification
Part Number Length Approx. Weight
(Lbs.)
59160SMLS
(59-160SMLS)		 2" (Close) 0.30
59161SMLS
(59-161SMLS)		 2-1/2" 0.80
59162SMLS
(59-162SMLS)		 3" 1.10
59163SMLS
(59-163SMLS)		 3-1/2" 1.31
59164SMLS
(59-164SMLS)		 4" 1.52
59165SMLS
(59-165SMLS)		 4-1/2" 1.72
59166SMLS
(59-166SMLS)		 5" 1.94
59167SMLS
(59-167SMLS)		 5-1/2" 2.15
59168SMLS
(59-168SMLS)		 6" 2.35
59169SMLS
(59-169SMLS)		 7" 2.78
59170SMLS
(59-170SMLS)		 8" 3.19
59171SMLS
(59-171SMLS)		 9" 3.62
59172SMLS
(59-172SMLS)		 10" 4.03
59173SMLS
(59-173SMLS)		 11" 4.44
59174SMLS
(59-174SMLS)		 12" 4.87
59196SMLS
(59-196SMLS)		 18" 7.22
59197SMLS
(59-197SMLS)		 24" 9.74
59198SMLS
(59-198SMLS)		 36" 14.61
59199SMLS
(59-199SMLS)		 48" 19.48
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
