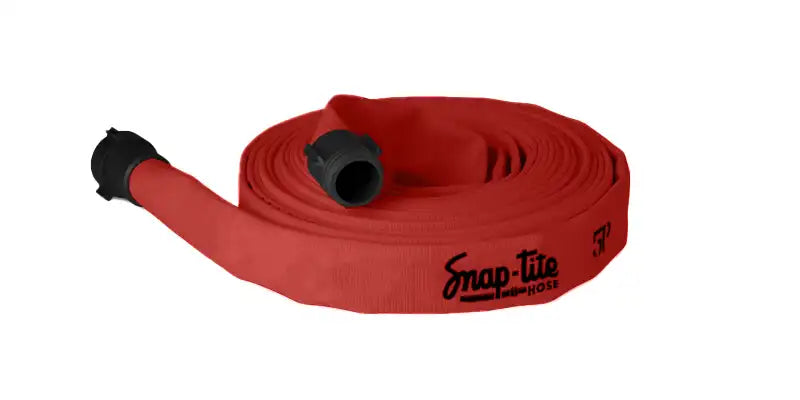

5P15X100R15N by Snap-Tite | 5P Series | Single Jacket Fire Hose Assembly with EPDM Liner | 1-1/2" Hose I.D. | 1-1/2" Male NH x 1-1/2" Female NH Couplings | 250 PSI | Red Dura-Cote | 100ft Length

5P15X100R15N by Snap-Tite | 5P Series | Single Jacket Fire Hose Assembly with EPDM Liner | 1-1/2" Hose I.D. | 1-1/2" Male NH x 1-1/2" Female NH Couplings | 250 PSI | Red Dura-Cote | 100ft Length

Save $117.33 Save $117.33
$410.66
$410.66 - $410.66
$410.66
$293.33
$293.33 - $293.33
$293.33

Snap-Tite Hose
5P™ - POLYESTER SINGLE JACKET EPDM RUBBER LINED HOSE

This hose may take 1-2 weeks to ship.

Package Quantity: 100 FT

Specifications for Variant SKU: 5P15X100R15N Snap-Tite
Series: 5P Series
Hose Color(s): Red
Internal Diameter: 1-1/2in
Tubing Construction: EPDM
Cover Construction: Polyester
Ends Configuration: 1-1/2in Male NH, 1-1/2in Female NH
Material(s): Aluminum
Applicable Specs & Approvals: \UL/ULC/FM Certified
Model: 5P™
Basic Construction: Polyester single jacket, EPDM rubber liner.
Application: Industrial
Colors: Yellow, Red, White (uncoated)
Temperature Range: -40°F - 150°F
Description:
Snap-tite's 5P™ is a medium pressure hose that is tough enough to meet most application requirements, while remaining economical for your budget. 5P™ is a polyester, single jacket style hose with an EPDM (Ethylene Propylene Diene Monomer) rubber liner that can handle most fluids, including some chemicals and petroleum-based products. It has a maximum operating pressure of 250 psi (1723 kPa) and can be treated with our optional Dura-Cote™ treatment for a higher level of abrasion resistance while preventing water-pickup.
Features:
  • Single jacket, polyester, EPDM rubber lined hose.
  • Optional Dura-Cote™ protective treatment.
  • Hose remains flexible at temperatures as low as -40°F (-40°C) and is resistant to ozone and oxidation.
  • Available with aluminum or brass couplings.
  • Designed for the following applications: General industrial and construction use; discharge hose in plant fire protection; wash down and maintenance.
  • Made in USA to ISO-9001:2015 certified quality assurance system.
  • 1-1/2" and 2-1/2" sizes are UL, ULC, and FM certified.
Yellow
Nominal
Size		 Part Number
25ft		 Part Number
50ft		 Part Number
100ft		 Coupling
Type		 Testing Pressures (PSI) Weight
(LBS/FT)		 Abrasion Resistance
Working Proof Burst Uncoupled # of Taber Abrasion Cycles
1-1/2" 5P15X25Y15N 5P15X50Y15N 5P15X100Y15N Standard 250 500 750 0.17 Exceeds UL19 Requirements
5P15X25Y15NBR 5P15X50Y15NBR 5P15X100Y15NBR
2" 5P20X25Y15N 5P20X50Y15N 5P20X100Y15N Standard 250 500 750 0.28 Exceeds UL19 Requirements
2-1/2" 5P25X25Y25N 5P25X50Y25N 5P25X100Y25N Standard 250 500 750 0.29 Exceeds UL19 Requirements
5P25X25Y25NBR 5P25X50Y25NBR 5P25X100Y25NBR
3" 5P30X25Y25N 5P30X50Y25N 5P30X100Y25N Standard - - - - Exceeds UL19 Requirements
Red
Nominal
Size		 Part Number
25ft		 Part Number
50ft		 Part Number
100ft		 Coupling
Type		 Testing Pressures (PSI) Weight
(LBS/FT)		 Abrasion Resistance
Working Proof Burst Uncoupled # of Taber Abrasion Cycles
1-1/2" 5P15X25R15N 5P15X50R15N 5P15X100R15N Standard 250 500 750 0.17 Exceeds UL19 Requirements
5P15X25R15NBR 5P15X50R15NBR 5P15X100R15NBR
2" 5P20X25R15N 5P20X50R15N 5P20X100R15N Standard 250 500 750 0.28 Exceeds UL19 Requirements
2-1/2" 5P25X25R25N 5P25X50R25N 5P25X100R25N Standard 250 500 750 0.29 Exceeds UL19 Requirements
5P25X25R25NBR 5P25X50R25NBR 5P25X100R25NBR
3" 5P30X25R25N 5P30X50R25N 5P30X100R25N Standard - - - - Exceeds UL19 Requirements
White (Uncoated)
Nominal
Size		 Part Number
25ft		 Part Number
50ft		 Part Number
100ft		 Coupling
Type		 Testing Pressures (PSI) Weight
(LBS/FT)		 Abrasion Resistance
Working Proof Burst Uncoupled # of Taber Abrasion Cycles
1-1/2" 5P15X25W15N 5P15X50W15N 5P15X100W15N Standard 250 500 750 0.17 Exceeds UL19 Requirements
5P15X25W15NBR 5P15X50W15NBR 5P15X100W15NBR
2" 5P20X25W15N 5P20X50W15N 5P20X100W15N Standard 250 500 750 0.28 Exceeds UL19 Requirements
2-1/2" 5P25X25W25N 5P25X50W25N 5P25X100W25N Standard 250 500 750 0.29 Exceeds UL19 Requirements
5P25X25W25NBR 5P25X50W25NBR 5P25X100W25NBR
3" 5P30X25W25N 5P30X50W25N 5P30X100W25N Standard - - - - Exceeds UL19 Requirements

*1-year warranty.

*1-1/2" and 2-1/2" are UL/ULC/FM Certified

*Potable water approved: No

*Quality Management System Certification: ISO 9001:2015 Registration # 11-R1045

Snap-Tite Hose

Snap-Tite Hose

Snap-tite Hose is a premier American manufacturer of high-performance lay-flat and industrial hoses trusted across firefighting, municipal, agricultural, and industrial markets. With more than 55 years of engineering excellence and innovation, Snap-tite produces rugged, lightweight, and reliable hose solutions built to perform in the toughest conditions — from firegrounds to farms and heavy-duty industrial sites. Every hose is proudly made in the USA to strict quality standards, delivering durability and confidence to the professionals who depend on them.
