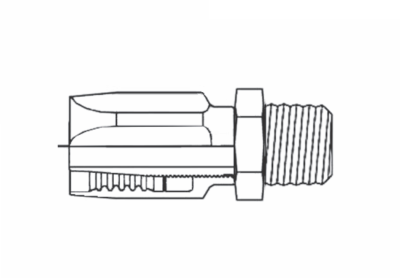

5R5-4MP Couplamatic Reusable Coupling - R5 Reusables - NPTF - Male Solid - 1/4" Hose ID - 1/4-18 Thread Size

5R5-4MP by Couplamatic | R5 Reusable Coupling | 1/4" Hose ID x 1/4-18 Thread Size Male Solid NPTF | Straight | Trivalent Zinc Plating

Save $9.27 Save $9.27
$23.17
$23.17 - $23.17
$23.17
$13.90
$13.90 - $13.90
$13.90

Couplamatic Systems Inc.
Reusable Couplings - 100R5 - R5 Reusables - NPTF - Male Solid
Specifications for Variant SKU: 5R5-4MP Couplamatic
Series: Reusable Fitting Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Male NPTF, 1/4in Reusable Hose End
Material(s): Steel
Compatible with the following Series: 57MB-2 Series
Reusable — Field Attachable

4R5 Reusable Coupling — NPTF, Male Solid, Straight

4R5 is the NPTF, Male Solid, Straight configuration of the Reusable Coupling, terminating 100R1 and 100R2 thin cover hose, or 100R5 textile cover hose, depending on the series.

1

What are the main product features?
  • Non-Mandrel and No Skive
  • Trivalent Zinc Plating
  • 1. Screw socket onto hose (left hand thread) until hose bottoms. Back out 1/4 turn.
  • 2. Lubricate insert threads and I.D. of hose. Screw insert into socket until insert hex touches socket.
  • Field attachable — assembles with hand tools; no crimp machine needed.
  • Reusable — the coupling can be removed and reinstalled on a new length of hose.
  • Ideal for field repair — keeps equipment running where a crimper is not available.
2

Which sizes are available?
Part Number Hose ID Hose Dash Size Pipe Size Thread Size Hose Type
4R5-2MP 3/16" -04 1/8" 1/8-27 100R5
4R5-4MP 3/16" -04 1/4" 1/4-18 100R5
5R5-4MP 1/4" -05 1/4" 1/4-18 100R5
6R5-4MP 5/16" -06 1/4" 1/4-18 100R5
6R5-6MP 5/16" -06 3/8" 3/8-18 100R5
8R5-6MP 13/32" -08 3/8" 3/8-18 100R5
8R5-8MP 13/32" -08 1/2" 1/2-14 100R5
10R5-8MP 1/2" -10 1/2" 1/2-14 100R5
12R5-12MP 5/8" -12 3/4" 3/4-14 100R5
