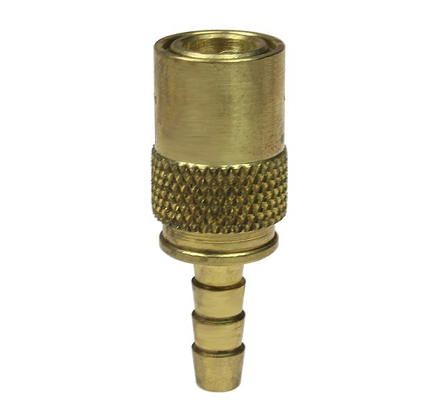

6-206 by Coilhose | Moldflow™ Series Hose Barb Coupler | Non-Valved | 1/4" Body Size | 3/8" Hose ID | Straight | Brass

Save $1.71

$15.38

$15.38 - $15.38

$15.38

$13.67

$13.67 - $13.67

$13.67

Coilhose Pneumatics - Couplers & Connectors - Moldflow™ Series - Straight Hose Barb Couplers

Quantity

Specifications for Variant SKU: 6-206 Coilhose
Brand:	Mold-Flow
Shape (Orientation):	Straight
Material(s):	Brass

Overview:
The Moldflow™ Series of couplers and connectors is designed primarily for use in cooling injection molds. They are available in valved or unvalved configurations. Engineered to interchange with other manufactures, these couplers and connectors are made from high quality brass with stainless steel balls, stainless steel valves and springs, and silicone seals. Valved couplers come with nickel-plated sleeve for easy identification.
Note:
Valved couplers must be used with valved connectors for proper operation.

Body Size:	1/4" & 3/8"	Orientation:	Straight
Locking Device:	Non-Valved: 6 Stainless Balls Valved: 7 Stainless Balls	Internal Valve:	Non-Valved: Brass Valved: Brass
Body Material:	Non-Valved: Brass Valved: Brass	Sleeve Material:	Non-Valved: Brass Valved: Nickel-Plated Brass
Maximum Input Pressure:	Non-Valved: 250 PSI Valved: 250 PSI	Temperature Range:	-50°F to 425°F
Seals:	Non-Valved: Silicone Valved: Silicone

Body Size	Hose ID	Non-Valved
1/4"	1/4"	6-204
1/4"	5/16"	6-205
1/4"	3/8"	6-206
3/8"	3/8"	6-306
3/8"	1/2"	6-308

r
