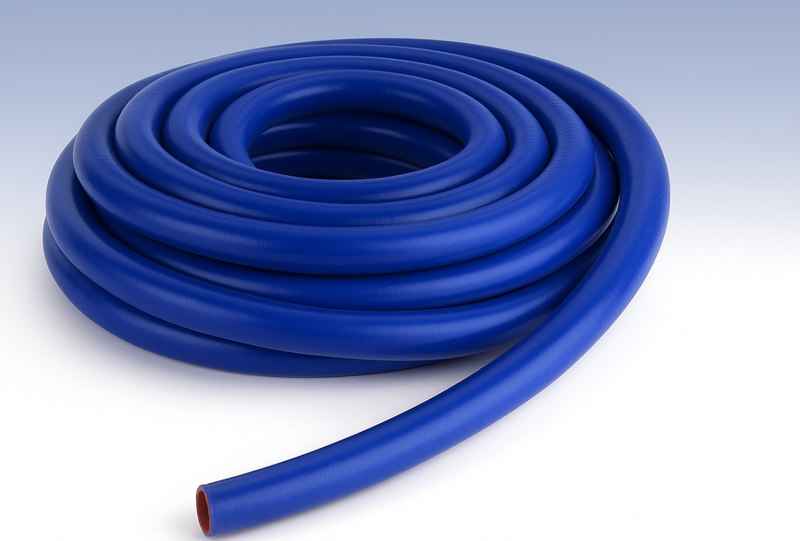

600-063X100 by coolMaster | 600 Series | Heater Hose

600-063X100 by coolMaster | 600 Series | Heater Hose | .63" Hose ID | Silicone | 100ft

Save $200.00 Save $200.00
$500.00
$500.00 - $500.00
$500.00
$300.00
$300.00 - $300.00
$300.00

coolMaster
600 Series Heater Hose

Expected to Ship to you in 2 Days.

Package Quantity: 100 FT

Specifications for Variant SKU: 600-063X100 coolMaster | 100 |
Series: 600 Series
Hose Color(s): Blue
Internal Diameter: 0.63in
Outer Diameter: 0.96in
Tubing Construction: Silicone
Cover Construction: Silicone
Part Number (25ft) Part Number (50ft) Part Number (100ft) Part Number (150ft) Hose ID (mm) Hose ID (inch) Wall Thickness (mm) Wall Thickness (inch) Outer Diameter (mm) Outer Diameter (inch) Burst Pressure (Mpa Spec/Actual) Burst Pressure (PSI Spec/Actual)
600-025X25 600-025X50 600-025X100 600-025X150 6 0.24 4.2 0.17 14.4 0.57 1.72 / 2.20 249 / 319
600-031X25 600-031X50 600-031X100 600-031X150 8 0.31 4.2 0.17 16.4 0.65 1.72 / 2.10 249 / 305
600-039X25 600-039X50 600-039X100 600-039X150 10 0.39 4.2 0.17 18.4 0.72 1.72 / 2.10 249 / 305
600-050X25 600-050X50 600-050X100 600-050X150 13 0.50 4.2 0.17 21.4 0.84 1.72 / 2.10 249 / 305
600-063X25 600-063X50 600-063X100 600-063X150 16 0.63 4.2 0.17 24.4 0.96 1.72 / 2.00 249 / 290
600-075X25 600-075X50 600-075X100 600-075X150 19 0.75 4.2 0.17 27.4 1.08 1.38 / 2.00 200 / 290
600-087X25 600-087X50 600-087X100 600-087X150 22 0.87 4.2 0.17 30.4 1.20 1.21 / 1.70 175 / 247
600-100X25 600-100X50 600-100X100 600-100X150 25 1.00 4.2 0.17 33.4 1.31 1.21 / 1.70 175 / 247
600-125X25 600-125X50 600-125X100 600-125X150 32 1.25 4.2 0.17 40.4 1.59 1.21 / 1.40 175 / 203

coolMaster Hose

CoolMaster Hose is a trusted source for premium silicone heater and coolant hose solutions. Based in Cleveland, Ohio, they maintain strong inventory levels of popular products to ensure quick shipping and reliable availability. Their extruded heater hoses meet or exceed SAE J20 R3 Class A specifications, and all silicone hoses are reinforced with durable polyester fabric for long-lasting performance. With competitive pricing and a focus on quality, CoolMaster delivers dependable hose products designed to support a wide range of applications.
