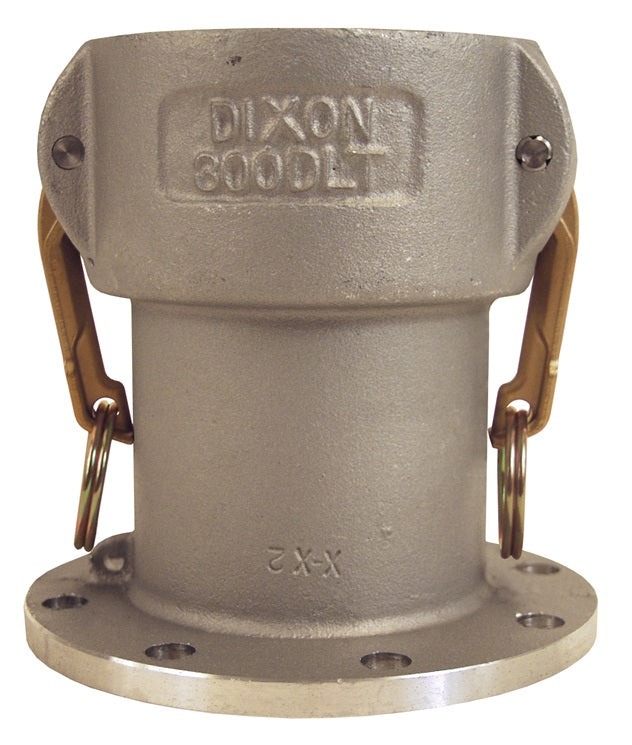

600-DLT-AL by Dixon Valve | Cam & Groove TTMA Flange Coupler | 6" Coupler x 6" TTMA Flange | Aluminum

600-DLT-AL by Dixon Valve | Cam & Groove TTMA Flange Coupler | 6" Coupler x 6" TTMA Flange | Aluminum

Save $158.13 Save $158.13
$395.32
$395.32 - $395.32
$395.32
$237.19
$237.19 - $237.19
$237.19

Dixon Valve
Tank Truck | Cam & Groove Coupler x TTMA Flange

Designed for use with liquids.
Specifications for Variant SKU: 600-DLT-AL Dixon
Brand: Bayco
Shape (Orientation): Straight
Cam Type: Other
Ends Configuration: 6in Female Cam & Groove, 6in TTMA Flange
Material(s): Aluminum
Seal Material(s): Buna-N/Nitrile Rubber
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Safety Note:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating is based on the seal of the mating part.
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard seal installed.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
356T6 Aluminum
Part Number		 Coupler x TTMA Flange
300-DLT-AL 3" x 3"
3040DLTAL 3" x 4"
400-DLT-AL 4" x 4"
600-DLT-AL 6" x 6"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.

Shop Parts by Dixon Valve & Coupling
