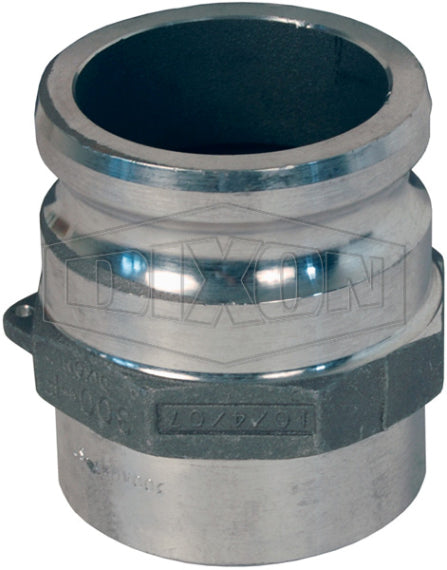

600AWBPSTAL by Dixon Valve | Cam & Groove Adapter for Welding | 6" Adapter Butt Weld x Schedule 40 Pipe/Socket Weld to Nominal Tubing | Aluminum

Name: 600AWBPSTAL by Dixon Valve | Cam & Groove Adapter for Welding | 6" Adapter Butt Weld x Schedule 40 Pipe/Socket Weld to Nominal Tubing | Aluminum
Brand: Dixon
SKU: 600AWBPSTAL Dixon
Price: 98.25 USD
Availability: InStock

Save $8.03

$106.28

$106.28 - $106.28

$106.28

$98.25

$98.25 - $98.25

$98.25

Dixon Valve
Cam & Groove Adapter for Welding | Adapter Butt Weld x Schedule 40 Pipe/Socket Weld to Nominal Tubing

Designed for use with liquids.

Quantity

Specifications for Variant SKU: 600AWBPSTAL Dixon
Shape (Orientation):	Straight
Ends Configuration:	6in Weld End, 6in Weld End, Some Ends Match
Material(s):	Aluminum

Safety Notes:
Dixon and Boss-Lock cam & groove couplings do not interchange in the 8" size. Under no circumstances should cam and groove couplings be used for compressed air or steam service! Final weld preparation, as with all weld fittings, is the responsibility of the welder. Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
Specifications:
Produced to interchange with all product produced to Commercial Item Description A-A-59326D.

356T6 Aluminum Part Number	316 Stainless Steel Part Number	Size	Bore	Maximum Operating Pressure
-	75AWBPSTSS	3/4"	0.765"	250 PSI
-	100AWBPSTSS	1"	1.015"	250 PSI
150AWBPSTAL	150AWBPSTSS	1-1/2"	1.515"	250 PSI
200AWBPSTAL	200AWBPSTSS	2"	2.015"	250 PSI
300AWBPSTAL	300AWBPSTSS	3"	3.015"	125 PSI
400AWBPSTAL	400AWBPSTSS	4"	4.015"	100 PSI
500AWBPSTAL	500AWBPSTSS	5"	5.015"	75 PSI
600AWBPSTAL	600AWBPSTSS	6"	6.020"	75 PSI
801AWBPSTAL	-	8" Boss-Lock	8.035"	50 PSI

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
