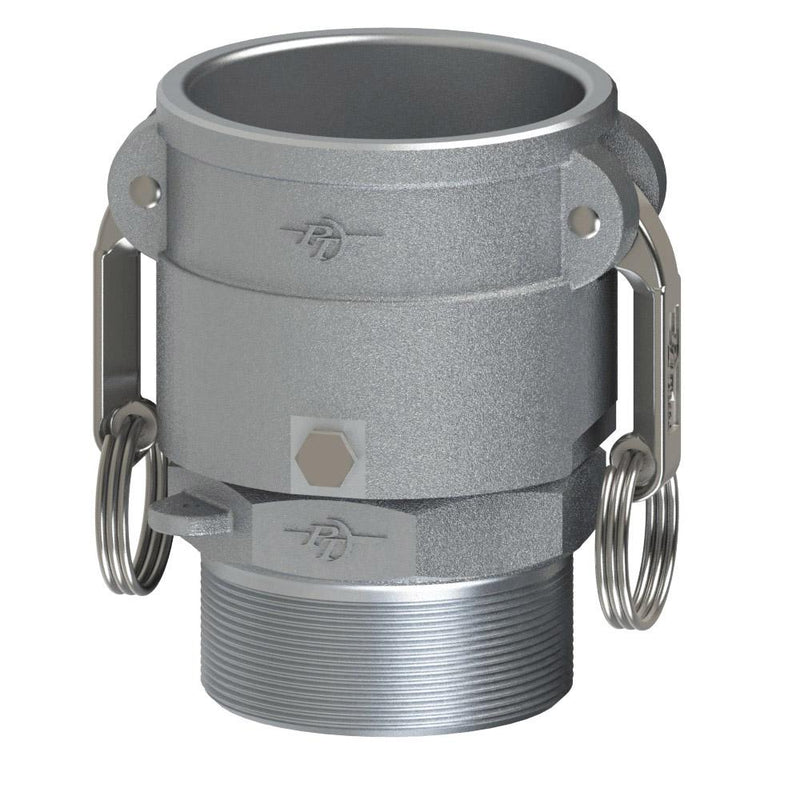

60192000 (20ASV) by PT-Coupling | Swivel Cam & Groove Adapter | Type BSV | 2" Swivel Coupler x 2" Male NPT | Aluminum | Viton Seal

Save $85.03

$229.07

$229.07 - $229.07

$229.07

$144.04

$144.04 - $144.04

$144.04

PT Coupling
Swivel Cam & Groove (Camlock) Adapter | Type BSV | Swivel Coupler x Male NPT | Aluminum | Viton Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 60192000 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type B
Ends Configuration:	2in Female Cam & Groove, 2in Male NPT
Material(s):	Aluminum
Seal Material(s):	Viton
Special Properties:	Swivel

Features & Applications:
Ball bearing swivel action. Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance. Use with water, hydraulic oil, coolants, gasoline, and petroleum products. Made in the USA.


Part Name	Aluminum Viton® Item #	Coupler Size	Male NPT Thread Size	O. D. with Cam Arms Extended (A)	Outside Diameter (B)	Overall Length (C)	Exposed Length (D)	Inside Diameter (E)	Max. Allowable Working Press. (PSI)*
15BSV	60191500	1-1/2"	1-1/2"	7.16"	3.56"	2.93"	1.88"	1.50"	250 PSI
20BSV	60192000	2"	2"	7.54"	3.94"	3.20"	2.15"	1.88"	250 PSI
30BSV	60193000	3"	3"	9.56"	5.46"	3.82"	2.27"	2.88"	200 PSI
40BSV	60194000	4"	4"	10.66"	6.56"	4.00"	2.34"	3.60"	150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
