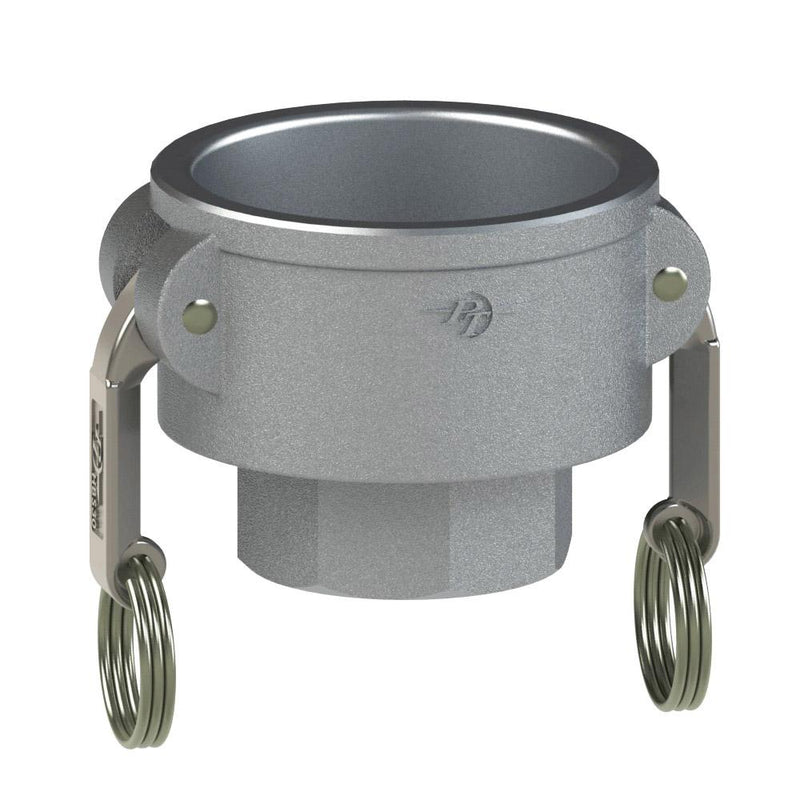

60202015 (20X15D) by PT-Coupling | Reducing Cam & Groove Adapter | Type D | 2" Coupler x 1-1/2" Female NPT | Aluminum/HBS | Buna-N Seal

60202015 (20X15D) by PT-Coupling | Reducing Cam & Groove Coupler | Type D | 2" Coupler x 1-1/2" Female NPT | Aluminum/HBS | Buna-N Seal

Save $26.89

$72.42

$72.42 - $72.42

$72.42

$45.53

$45.53 - $45.53

$45.53

PT Coupling
Reducing Cam & Groove (Camlock) Adapter | Type D | Coupler x Female NPT | Aluminum/HBS | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 60202015 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type D
Ends Configuration:	2in Female Cam & Groove, 1-1/2in Female NPT
Material(s):	Aluminum
Seal Material(s):	Buna-N/Nitrile

Features & Applications:
HBS cam arms are made of 300 series Stainless Steel. Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance. Use with water, hydraulic oil, coolants, gasoline, and petroleum products. Made in the USA

Part Name	Item #	Coupler Size	Female NPT Thread	Max. Allowable Working Press. (PSI)*
15X10D	60201510	1-1/2"	1"	250 PSI
20X10D	60202010**	2"	1"	250 PSI
20X15D	60202015	2"	1-1/2"	250 PSI
25X10D	60202510	2-1/2"	1"	200 PSI
25X20D	60202520	2-1/2"	2"	200 PSI
30X20D	60203020	3"	2"	200 PSI
30X25D	60203025	3"	2-1/2"	200 PSI
40X30D	60204030	4"	3"	150 PSI

** Denotes parts are produced as a welded fabrication.
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
