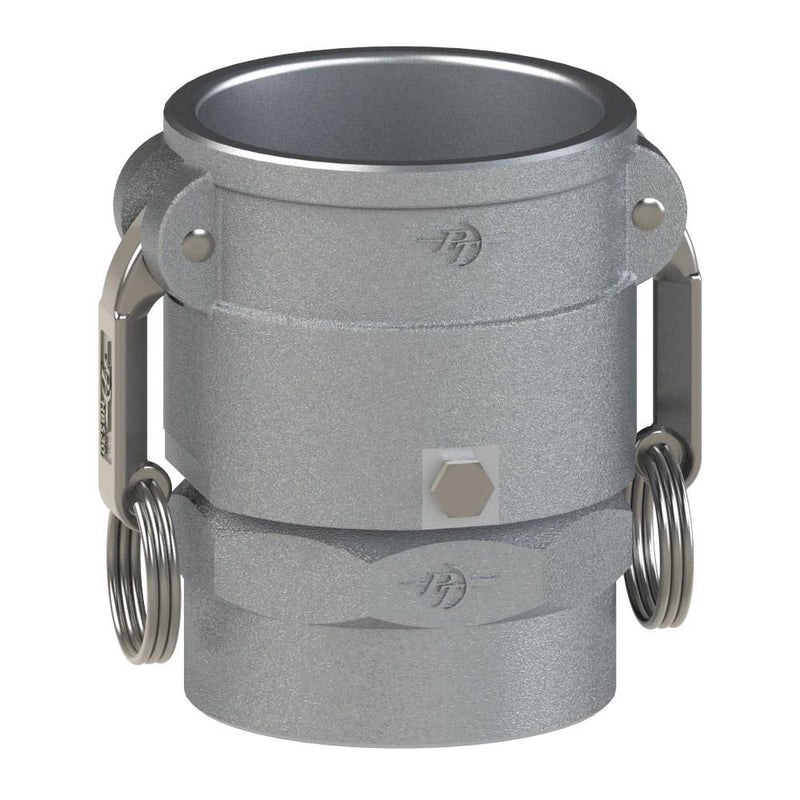

60214100 (40DSV) by PT-Coupling | Swivel Cam & Groove Adapter | Type DSV | 4" Swivel Coupler x 4" Female NPT | Aluminum | Buna Seal

Save $119.48

$321.87

$321.87 - $321.87

$321.87

$202.39

$202.39 - $202.39

$202.39

PT Coupling
Swivel Cam & Groove (Camlock) Adapter | Type DSV | Swivel Coupler x Female NPT | Aluminum | Buna Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 60214100 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type D
Ends Configuration:	4in Female Cam & Groove, 4in Female NPT
Material(s):	Aluminum
Seal Material(s):	Buna-N/Nitrile
Special Properties:	Swivel

Features & Applications:
Ball bearing swivel action. Available with U-cup Viton® or Buna Seals Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance. Use with water, hydraulic oil, coolants, gasoline, and petroleum products. Made in the USA.


Part Name	Aluminum Viton® Item #	Aluminum Buna Item #	Coupler Size	Female NPT Thread Size	O. D. with Cam Arms Extended (A)	Outside Diameter (B)	Overall Length (C)	Inside Diameter (E)	Max. Allowable Working Press. (PSI)*
15DSV	60211500	-	1-1/2"	1-1/2"	7.16"	3.56"	2.80"	1.50"	250 PSI
20DSV	60212000	-	2"	2"	7.54"	3.94"	3.10"	1.88"	250 PSI
25DSV	60212500	-	2-1/2"	2-1/2"	8.03"	4.43"	3.40"	2.38"	200 PSI
30DSV	60213000	60213100	3"	3"	9.56"	5.46"	3.50"	2.88"	200 PSI
40DSV	60214000	60214100	4"	4"	10.66"	6.56"	3.90"	3.60"	150 PSI
50DSV	60215000	-	5"	5"	11.67"	7.57"	4.1"	4.5"	75 PSI
60DSV	60216000	-	6"	6"	16.26"	10.16"	4.40"	5.50"	75 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
