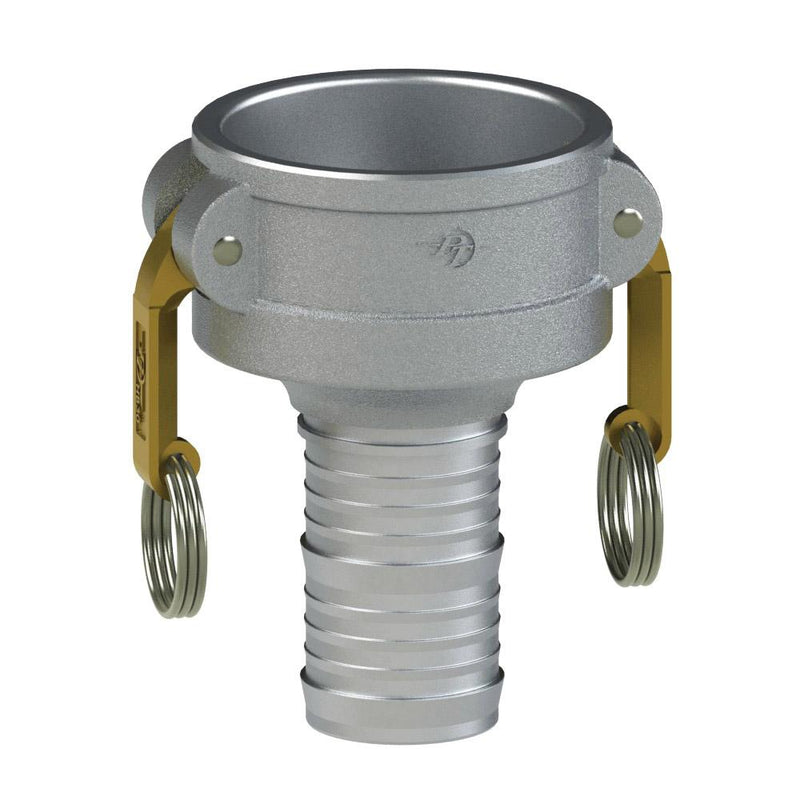

6022000001 (15X10C) by PT-Coupling | Reducing Cam & Groove Fitting | Type C | 1-1/2" Coupler x 1" Hose Shank | Aluminum/HB | Buna-N Seal

Save $45.41

$122.32

$122.32 - $122.32

$122.32

$76.91

$76.91 - $76.91

$76.91

PT Coupling
Reducing Cam & Groove (Camlock) Fitting | Type C | Coupler x Hose Shank | Aluminum/HB | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 6022000001 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type C
Ends Configuration:	1-1/2in Female Cam & Groove, 1in Hose Barb
Material(s):	Aluminum
Seal Material(s):	Buna-N/Nitrile

Features & Applications:
HB cam arms are made of Brass Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance. Use with water, hydraulic oil, coolants, gasoline, and petroleum products. Made in the USA

Part Name	Item #	Coupler Size	Hose Shank Size	Max. Allowable Working Press. (PSI)*
10X07C	602200002	1"	3/4"	250 PSI
15X10C	6022000001	1-1/2"	1"	250 PSI
15X20C	6022000016	1-1/2"	2"	250 PSI
20X15C	6022000017	2"	1-1/2"	250 PSI
20X25C	6022000018	2"	2-1/2"	200 PSI
30X20C	6022000020	3"	2"	200 PSI
30X25C	6022000021	3"	2-1/2"	200 PSI
40X20C	6022000022	4"	2"	150 PSI
40X30C	6022000023	4"	3"	150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
