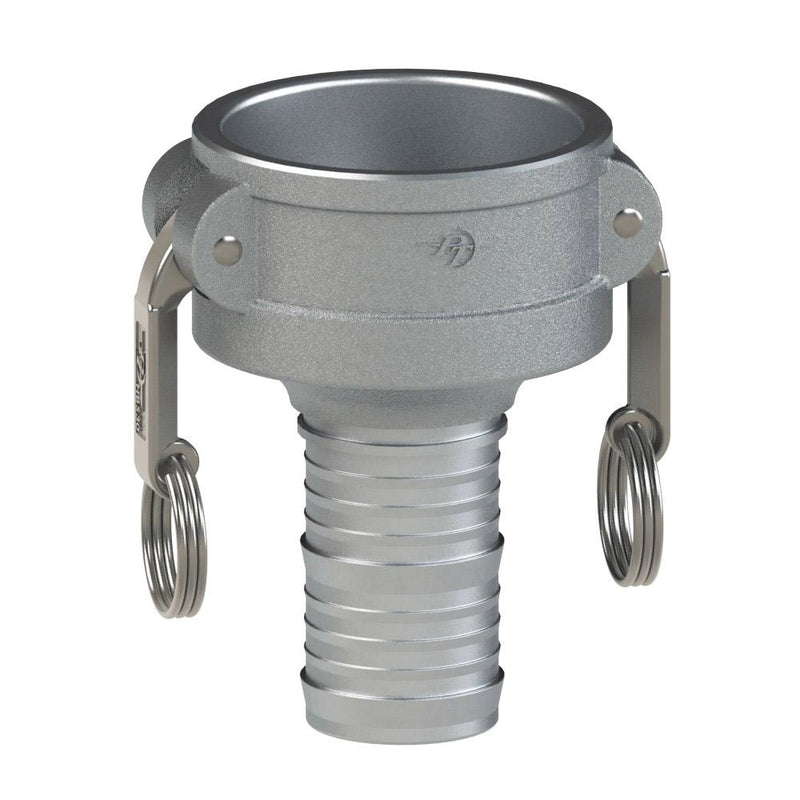

60222015 (20X15C) by PT-Coupling | Reducing Cam & Groove Fitting | Type C | 2" Coupler x 1-1/2" Hose Shank | Aluminum/HBS | Buna-N Seal

Save $27.41

$73.88

$73.88 - $73.88

$73.88

$46.47

$46.47 - $46.47

$46.47

PT Coupling
Reducing Cam & Groove (Camlock) Fitting | Type C | Coupler x Hose Shank | Aluminum/HBS | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 60222015 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type C
Ends Configuration:	2in Female Cam & Groove, 1-1/2in Hose Barb
Material(s):	Aluminum
Seal Material(s):	Buna-N/Nitrile

Features & Applications:
HBS cam arms are made of 300 series Stainless Steel. Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance. Use with water, hydraulic oil, coolants, gasoline, and petroleum products. Made in the USA

Part Name	Item #	Coupler Size	Hose Shank Size	Max. Allowable Working Press. (PSI)*
15X10C	60221510	1-1/2"	1"	250 PSI
15X20C	60221520	1-1/2"	2"	250 PSI
20X15C	60222015	2"	1-1/2"	250 PSI
20X25C	60222025	2"	2-1/2"	200 PSI
25X20C	60222520	2-1/2"	2"	200 PSI
30X20C	60223020	3"	2"	200 PSI
30X25C	60223025	3"	2-1/2"	200 PSI
40X20C	60224020	4"	2"	150 PSI
40X30C	60224030	4"	3"	150 PSI

** Denotes parts are produced as a welded fabrication.
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
