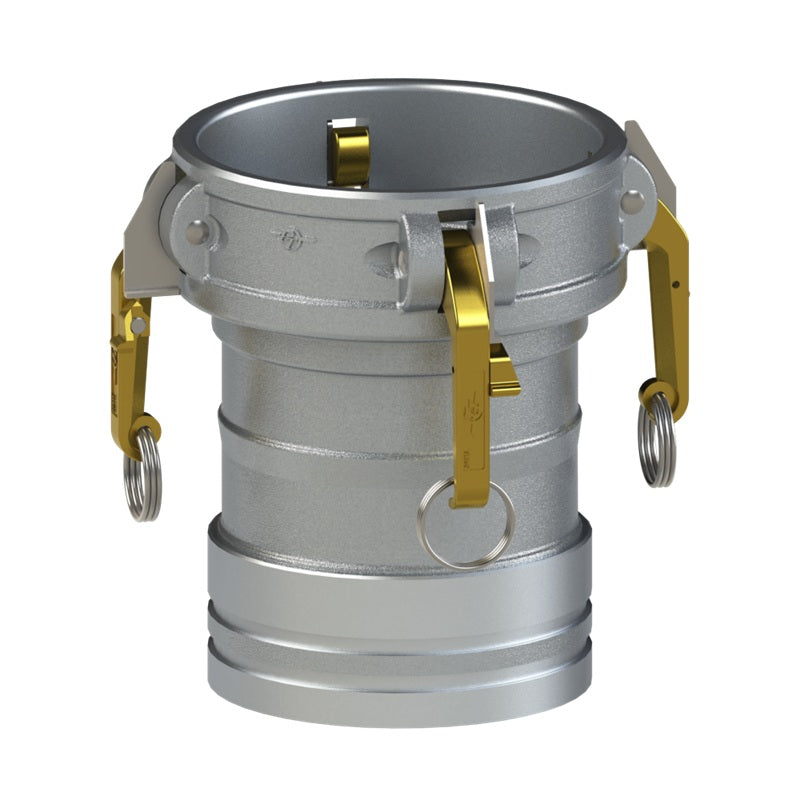

60226004 (60CDGHD) by PT-Coupling | Heavy Duty Cam & Groove Fitting | Type CDGHD | 6" Coupler x 6" Double Groove Victaulic Fitting | Aluminum | Buna-N Seal

60226004 (60CDGHD) by PT-Coupling | Heavy Duty Cam & Groove Fitting | Type CDGHD | 6" Coupler x 6" Double Groove Victaulic Fitting | Aluminum | Buna-N Seal

Save $163.18 Save $163.18
$439.58
$439.58 - $439.58
$439.58
$276.40
$276.40 - $276.40
$276.40

PT Coupling
Heavy Duty Cam & Groove (Camlock) Fitting | Type CDGHD | Coupler x Double Groove Victaulic Fitting | Aluminum | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Specifications for Variant SKU: 60226004 PT-Coupling
Shape (Orientation): Straight
Cam Type: Other
Ends Configuration: 6in Female Cam & Groove, 6in Grooved End
Material(s): Aluminum
Seal Material(s): Buna-N/Nitrile
Features & Applications:
  • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
  • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • 2-1/2" and smaller couplers come standard with 2 cam arms while 3" and larger couplers come with 4 STA-LOK® II cam arms.
  • Made in the USA
Part
Name		 Item # Heavy Duty
Coupler		 Double Groove
End		 Max. Allowable
Working Press.
(PSI)*
60ADGHD 60226004** 6" 6" 150 PSI

** Heavy Duty couplings have a higher working pressure than standard couplings.
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
