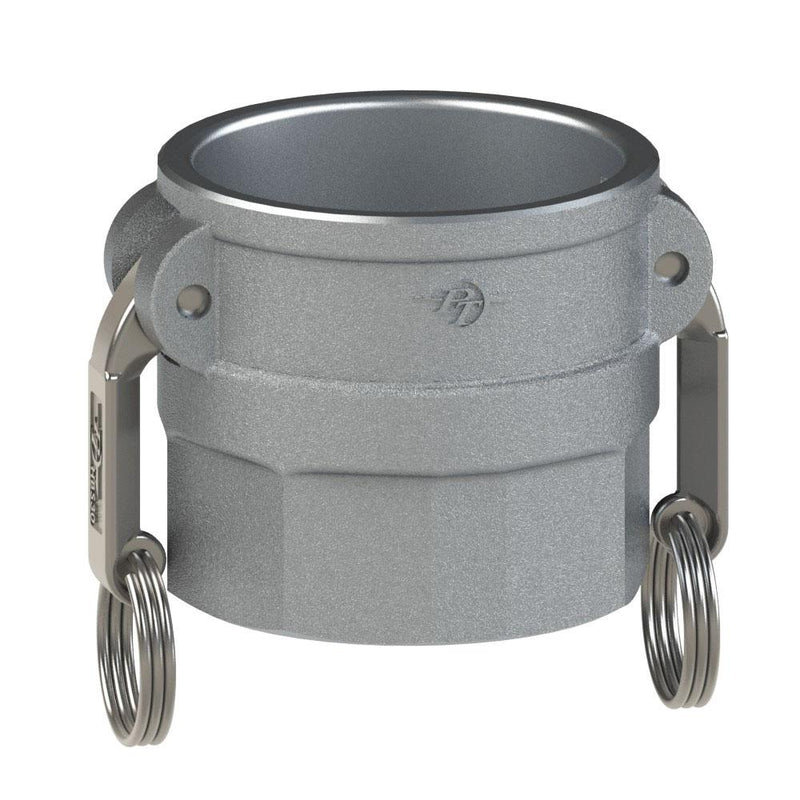

60365000 (50DS) by PT-Coupling | Cam & Groove Adapter | Type DS | 5" Coupler x 5" Female NPSH | Aluminum/HBS | Buna Fuel Resistant & Buna-N Seals

Save $61.37

$165.33

$165.33 - $165.33

$165.33

$103.96

$103.96 - $103.96

$103.96

PT Coupling
Cam & Groove (Camlock) Adapter | Type DS | Coupler x Female NPSH | Aluminum/HBS | Buna Fuel Resistant & Buna-N Seals

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 60365000 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type D
Ends Configuration:	5in Female Cam & Groove, 5in Female NPSH
Material(s):	Aluminum
Seal Material(s):	Buna-N/Nitrile

Features & Applications:
HBS cam arms are made of 300 series Stainless Steel. Female straight pipe threads are compatible with male NPSH, NPSM and NPT threads. Comes standard with a Buna Fuel Resistant straight thread gasket, and Buna-N cam gasket. Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance. Use with water, hydraulic oil, coolants, gasoline, and petroleum products. Made in the USA


Part Name	Item #	Coupler Size	Female NPSH Thread	O. D. with Cam Arms Extended (A)	Outside Diameter (B)	Overall Length (C)	Inside Diameter (E)	Max. Allowable Working Press. (PSI)*
15DS	60361500	1-1/2"	1-1/2"	-	-	-	-	250 PSI
20DS	60362000	2"	2"	7.54"	3.94"	3.10"	1.88"	250 PSI
25DS	60362500	2-1/2"	2-1/2"	8.03"	4.43"	3.40"	2.38"	200 PSI
30DS	60363000	3"	3"	9.56"	5.46"	3.50"	2.88"	200 PSI
40DS	60364000	4"	4"	10.66"	6.56"	3.90"	3.60"	150 PSI
50DS	60365000	5"	5"	11.67"	7.57"	4.10"	4.50"	75 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
