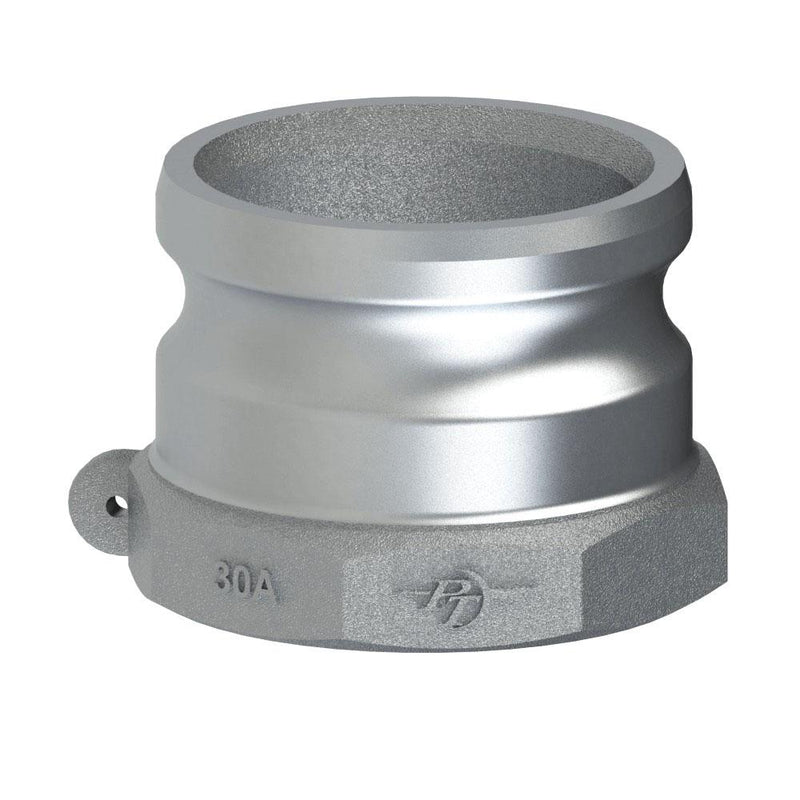

60373000 (30AFH) by PT-Coupling | Cam & Groove Adapter | Type AFH | 3" Adapter x 3" Female Fire Hose (NH) Thread | Aluminum | EPDM Seal

Save $38.56

$103.88

$103.88 - $103.88

$103.88

$65.32

$65.32 - $65.32

$65.32

PT Coupling
Cam & Groove (Camlock) Adapter | Type AFH | Adapter x Female Fire Hose (NH) Thread | Aluminum | EPDM Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 60373000 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type A
Ends Configuration:	3in Male Cam & Groove, 3in Female NST
Material(s):	Aluminum
Seal Material(s):	EPDM

Features & Applications:
Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance. Use with water, hydraulic oil, coolants, gasoline, and petroleum products. Comes standard with EPDM NH Thread Gasket Made in the USA


Part Name	Item #	Adapter Size	Female Fire Hose Thread (NH) Size	Overall Length (C)	Inside Diameter (E)	Across Corners (F)	Chain Lug Extension (G)	Max. Allowable Working Press. (PSI)*
15AFH	60371500	1-1/2"	1-1/2"	2.29"	1.35"	2.44"	0.33"	250 PSI
25AFH	60372500	2-1/2"	2-1/2"	2.75"	2.14"	3.49"	0.27"	200 PSI
30AFH	60373000	3"	3"	2.84"	2.80"	4.22"	0.44"	200 PSI
30X25AFH	60373025	3"	2-1/2"	2.84"	2.80"	4.22"	0.44"	200 PSI
40AFH	60374000	4"	4"	3.16"	3.78"	5.41"	0.39"	150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
