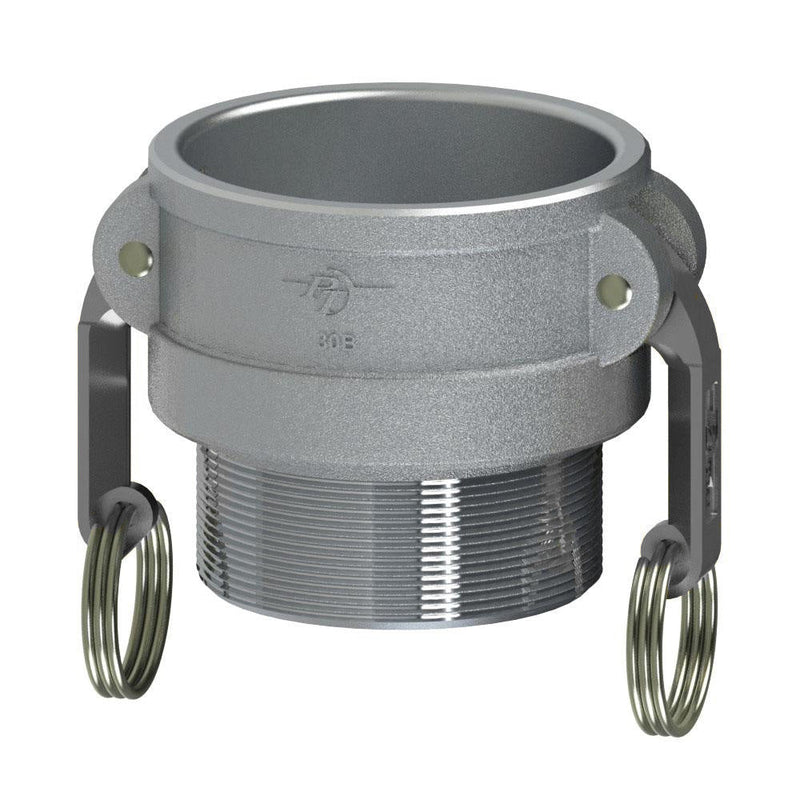

60382500 (25BFH) by PT-Coupling | Cam & Groove Adapter | Type BFH | 2-1/2" Coupler x 2-1/2" Male Fire Hose (NH) Thread | Aluminum/HBS | Buna-N Seal

Save $37.56

$101.20

$101.20 - $101.20

$101.20

$63.64

$63.64 - $63.64

$63.64

PT Coupling
Cam & Groove (Camlock) Adapter | Type BFH | Coupler x Male Fire Hose (NH) Thread | Aluminum/HBS | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 60382500 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type B
Ends Configuration:	2-1/2in Female Cam & Groove, 2-1/2in Male NST
Material(s):	Aluminum
Seal Material(s):	Buna-N/Nitrile

Features & Applications:
HBS cam arms are made of 300 series Stainless Steel. Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance. Use with water, hydraulic oil, coolants, gasoline, and petroleum products. Comes Standard with Buna N cam gasket. Made in the USA


Part Name	Item #	Coupler Size	Male Fire Hose Thread (NH) Size	O. D. with Cam Arms Extended (A)	Overall Length (C)	Outside Diameter (B)	Exposed Length (D)	Inside Diameter (E)	Max. Allowable Working Press. (PSI)*
25BFH	60382500	2-1/2"	2-1/2"	8.03"	3.63"	4.43"	2.18"	2.38"	200 PSI
30BFH	60383000	3"	3"	9.56"	3.82"	5.46"	2.27"	2.88"	200 PSI
30X25BFH	60383025	3"	2-1/2"	9.56"	3.82"	5.46"	2.27"	2.88"	200 PSI
40BFH	60384000	4"	4"	10.66"	4.00"	6.56"	2.34"	3.60"	150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
