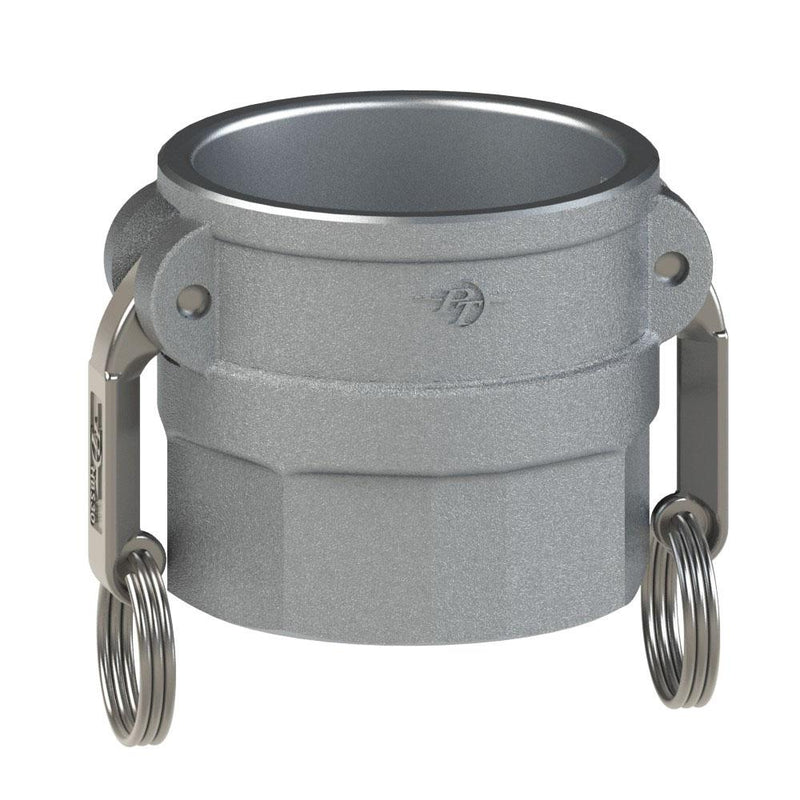

60392500 (25DFH) by PT-Coupling | Cam & Groove Adapter | Type DFH | 2-1/2" Coupler x 2-1/2" Female Fire Hose (NH) Thread | Aluminum/HBS | EPDM & Buna-N Seals

Name: 60392500 (25DFH) by PT-Coupling | Cam & Groove Adapter | Type DFH | 2-1/2" Coupler x 2-1/2" Female Fire Hose (NH) Thread | Aluminum/HBS | EPDM & Buna-N Seals
Brand: PT-Coupling
SKU: 60392500 PT-Coupling
Price: 61.4 USD
Availability: InStock

Save $36.25

$97.65

$97.65 - $97.65

$97.65

$61.40

$61.40 - $61.40

$61.40

PT Coupling
Cam & Groove (Camlock) Adapter | Type DFH | Coupler x Female Fire Hose (NH) Thread | Aluminum/HBS | EPDM & Buna-N Seals

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 60392500 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type B
Ends Configuration:	2-1/2in Female Cam & Groove, 2-1/2in Female NST
Material(s):	Aluminum
Seal Material(s):	Buna-N/Nitrile

Features & Applications:
HBS cam arms are made of 300 series Stainless Steel. Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance. Use with water, hydraulic oil, coolants, gasoline, and petroleum products. Comes standard with EPDM NH Thread Gasket and Buna-N cam gasket. Made in the USA


Part Name	Item #	Coupler Size	Female Fire Hose Thread (NH) Size	O. D. with Cam Arms Extended (A)	Outside Diameter (B)	Overall Length (C)	Inside Diameter (E)	Max. Allowable Working Press. (PSI)*
15DFH	60391500	1-1/2"	1-1/2"	7.16"	3.56"	2.80"	1.50"	250 PSI
25DFH	60392500	2-1/2"	2-1/2"	8.03"	4.43"	3.40"	2.38"	200 PSI
30DFH	60393000	3"	3"	9.56"	5.46"	3.50"	2.88"	200 PSI
30X25DFH	60393025	3"	2-1/2"	9.56"	5.46"	3.50"	2.88"	200 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
