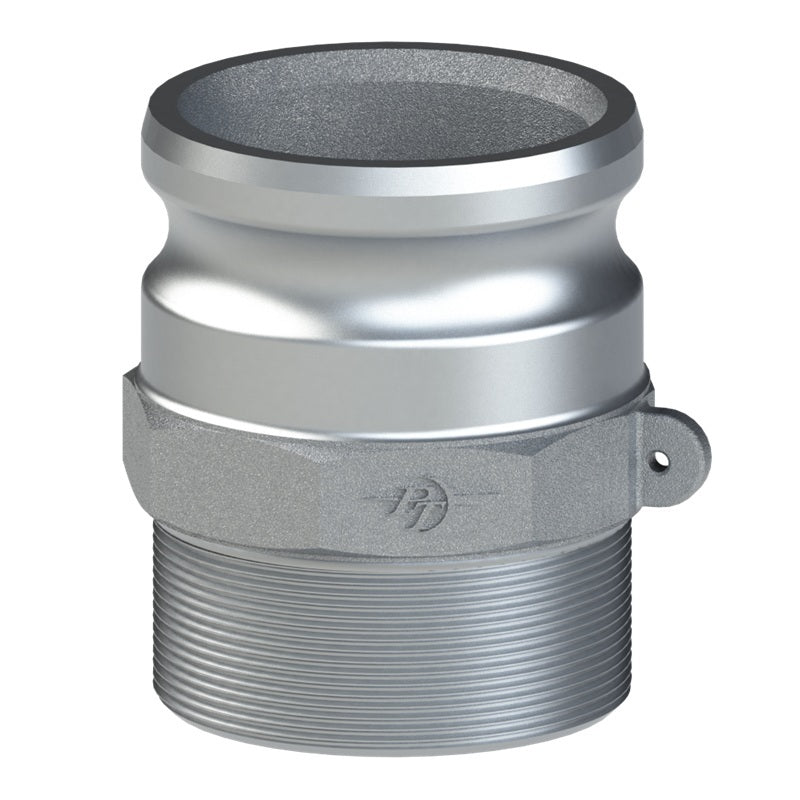

60403000 (30FFH) by PT-Coupling | Cam & Groove Adapter | Type FFH | 3" Adapter x 3" Male Fire Hose (NH) Thread | Aluminum

60403000 (30FFH) by PT-Coupling | Cam & Groove Adapter | Type FFH | 3" Adapter x 3" Male Fire Hose (NH) Thread | Aluminum

Save $38.59 Save $38.59
$103.92
$103.92 - $103.92
$103.92
$65.33
$65.33 - $65.33
$65.33

PT Coupling
Cam & Groove (Camlock) Adapter | Type FFH | Adapter x Male Fire Hose (NH) Thread | Aluminum

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Specifications for Variant SKU: 60403000 PT-Coupling
Shape (Orientation): Straight
Cam Type: Type F
Ends Configuration: 3in Male Cam & Groove, 3in Male NST
Material(s): Aluminum
Features & Applications:
  • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
  • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA
Part
Name		 Item # Coupler
Size		 Male Fire Hose
Thread (NH)
Size		 Overall
Length
(C)		 Exposed
Length
(D)		 Inside
Diameter
(E)		 Max.
Across
Corners
(F)		 Chain Lug
Extension
(G)		 Max. Allowable
Working Press.
(PSI)*
15FFH 60401500 1-1/2" 1-1/2" 3.29" 2.31" 1.34" 2.44" 0.30" 250 PSI
25FFH 60402500 2-1/2" 2-1/2" 4.18" 2.78" 2.14" 3.45" 0.29" 200 PSI
30FFH 60403000 3" 3" 4.37" 2.87" 2.80" 4.07" 0.44" 200 PSI
30X25FFH 60403025 3" 2-1/2" 4.37" 2.87" 2.80" 4.07" 0.44" 200 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
