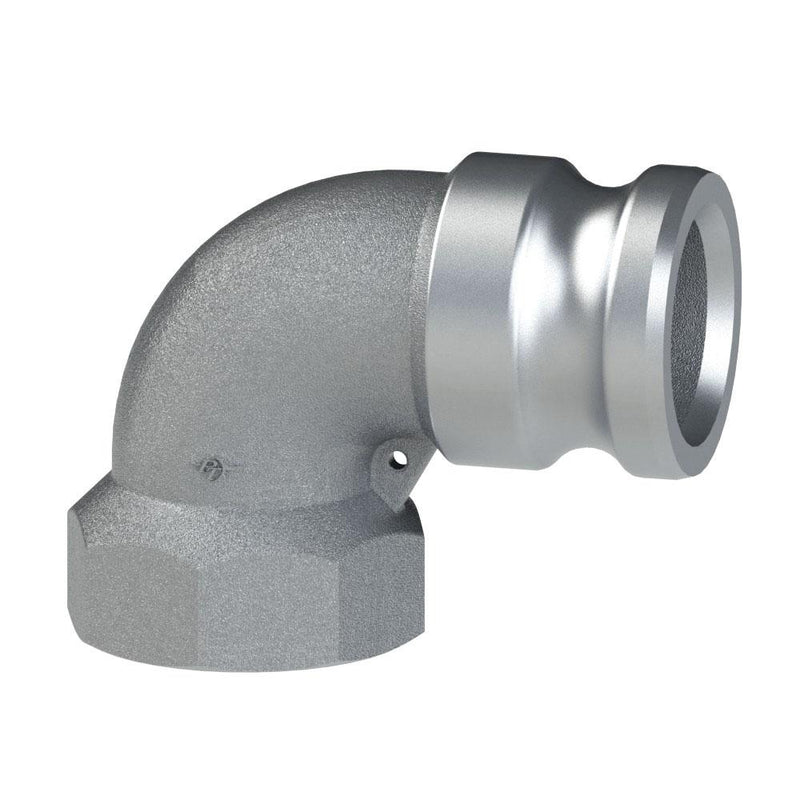

60492000 (20LA) by PT-Coupling | Cam & Groove Adapter | Type LA | 90° Elbow | 2" Adapter x 2" Female NPT | Aluminum

Save $28.97

$78.05

$78.05 - $78.05

$78.05

$49.08

$49.08 - $49.08

$49.08

PT Coupling
Cam & Groove (Camlock) Adapter | Type LA | 90° Elbow | Adapter x Female NPT | Aluminum

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 60492000 PT-Coupling
Shape (Orientation):	90 Degree Elbow
Cam Type:	Type A
Ends Configuration:	2in Male Cam & Groove, 2in Female NPT
Material(s):	Aluminum

Features & Applications:
Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance. Use with water, hydraulic oil, coolants, gasoline, and petroleum products. Made in the USA

Part Name	Item #	Orientation	Adapter Size	Female NPT Size	Max. Allowable Working Press. (PSI)*
15LA	60491500	90°	1-1/2"	1-1/2"	250 PSI
20LA	60492000	90°	2"	2"	250 PSI
30LA	60493000**	90°	3"	3"	200 PSI

** Denotes parts are produced as welded fabrication
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
