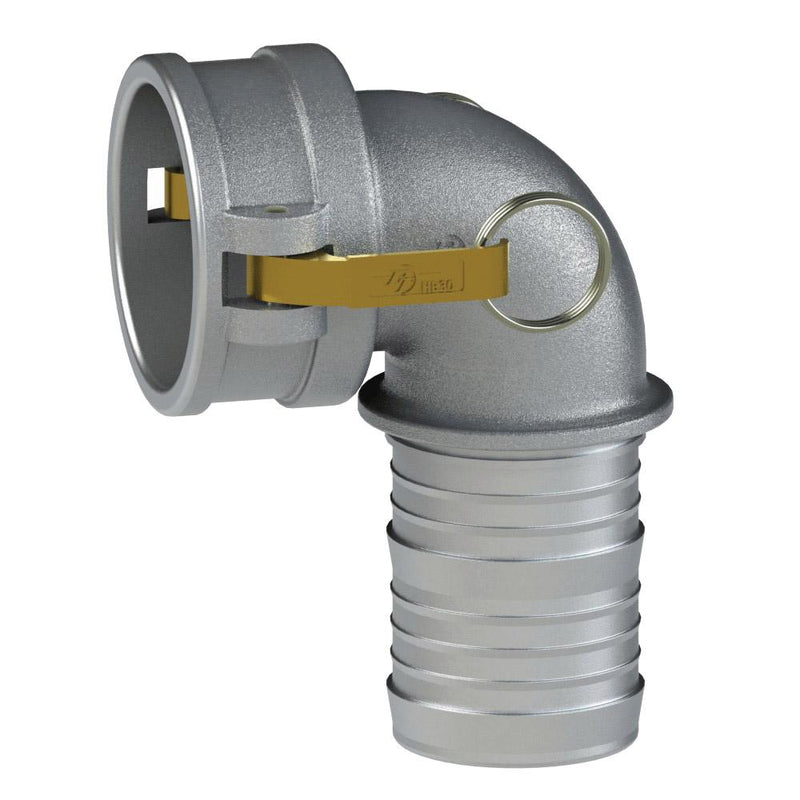

6050000063 (15CL) by PT-Coupling | Cam & Groove Adapter | Type CL | 90° Elbow | 1-1/2" Coupler x 1-1/2" Hose Shank | Aluminum/HB | Buna-N Seal

6050000063 (15CL) by PT-Coupling | Cam & Groove Fitting | Type CL | 90° Elbow | 1-1/2" Coupler x 1-1/2" Hose Shank | Aluminum/HB | Buna-N Seal

Save $32.22

$86.82

$86.82 - $86.82

$86.82

$54.60

$54.60 - $54.60

$54.60

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 6050000063 PT-Coupling
Shape (Orientation):	90 Degree Elbow
Cam Type:	Type C
Ends Configuration:	1-1/2in Female Cam & Groove, 1-1/2in Hose Barb
Material(s):	Aluminum
Seal Material(s):	Buna-N/Nitrile

Features & Applications:
HB cam arms are made of Brass. Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance. Use with water, hydraulic oil, coolants, gasoline, and petroleum products. Made in the USA

Part Name	Item #	Orientation	Coupler Size	Hose Shank Size	Max. Allowable Working Press. (PSI)*
10CL	6050000061	90°	1"	1"	250 PSI
15CL	6050000063	90°	1-1/2"	1-1/2"	250 PSI
20CL	6050000064	90°	2"	2"	250 PSI
30CL	6050000065	90°	3"	3"	200 PSI
40CL	6050000067	90°	4"	4"	150 PSI
60CL	60506000	90°	6"	6"	75 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
