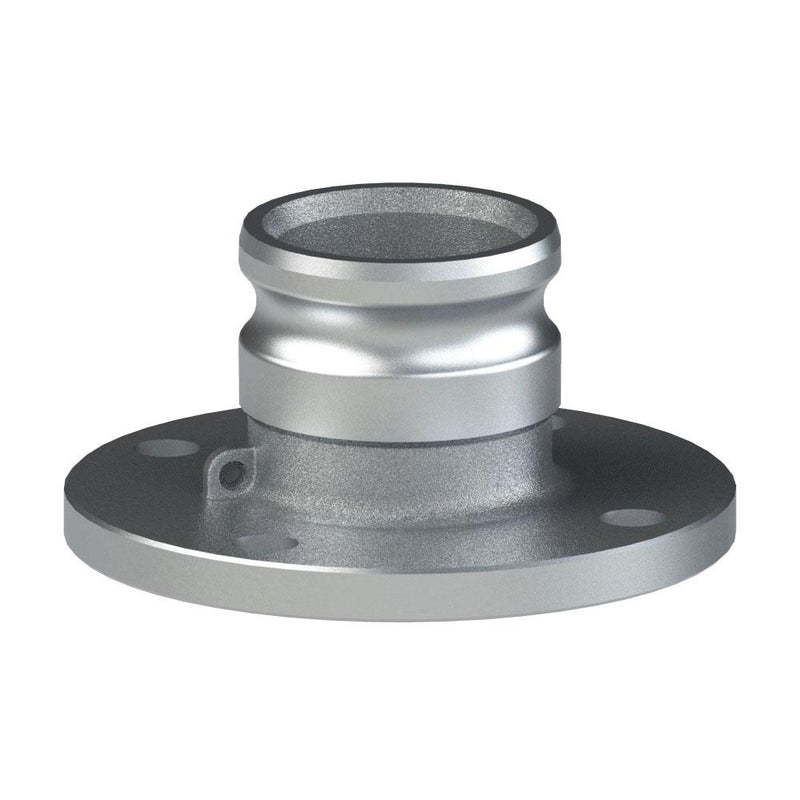

60529200 (PF120A) by PT-Coupling | Cam & Groove Adapter | Type PFA | 12" Adapter x 12" 150# Pipe Flange | Aluminum

60529200 (PF120A) by PT-Coupling | Cam & Groove Adapter | Type PFA | 12" Adapter x 12" 150# Pipe Flange | Aluminum

Save $1,971.99 Save $1,971.99
$5,312.47
$5,312.47 - $5,312.47
$5,312.47
$3,340.48
$3,340.48 - $3,340.48
$3,340.48

PT Coupling
Cam & Groove (Camlock) Adapter | Type PFA | Adapter x 150# Pipe Flange | Aluminum

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Specifications for Variant SKU: 60529200 PT-Coupling
Shape (Orientation): Straight
Cam Type: Other
Ends Configuration: 12in Male Cam & Groove, 12in 150# Flange
Material(s): Aluminum
Features & Applications:
  • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
  • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Pipe Flange bolt pattern conforms to ANSI B16.5 Class 150.
  • Stainless Steel and Carbon Steel Flanges are raised face. Other materials are supplied with flat face flanges.
  • Made in the USA
Part
Name		 Item # Adapter
Size		 Flange
Size		 Overall
Length
(C)		 Inside
Diameter
(E)		 Outside
Diameter
(F)		 Bolt Hole
Diameter
(J)		 Number
of Holes
(K)		 Bolt Circle
Diameter
(L)		 Max. Allowable
Working Press.
(PSI)*		 Weight
PF10A 60521000 1" 1" 2.32" 0.88" 4.25" 0.63" 4 3.13" 250 PSI 0.785 lbs.
PF15A 60521500 1-1/2" 1-1/2" 3.56" 1.34" 5.00" 0.63" 4 3.88" 250 PSI 1.484 lbs.
PF20A 60522000 2" 2" 3.50" 1.72" 6.00" 0.75" 4 4.75" 250 PSI 2.135 lbs.
PF25A 60522500 2-1/2" 2-1/2" 3.63" 2.14" 7.00" 0.75" 4 5.50" 200 PSI 3.23 lbs.
PF30A 60523000 3" 3" 3.69" 2.78" 7.50" 0.75" 4 6.00" 200 PSI 3.205 lbs.
PF30X40A 60523040 3" 4" 3.69" 2.78" 9.00" 0.75" 4 6.00" 150 PSI 4.89 lbs.
PF40A 60524009 4" 4" 4.00" 3.78" 9.00" 0.75" 8 7.50" 150 PSI 5.09 lbs.
PF40X30A 60524030 4" 3" - - - - - - 150 PSI -
PF40X60A 60524060 4" 6" 4.00" 3.78" 11.00" 0.75" 8 7.50" 75 PSI 10.48 lbs.
PF40X80A 60524080 4" 8" 4.00" 3.78" 13.5" 0.75" 8 11.75" 50 PSI -
PF50A 60525000 5" 5" 4.44" 4.79" 10.00" 0.88" 8 8.50" 75 PSI -
PF60A 60526000 6" 6" 4.50" 5.56" 11.00" 0.88" 8 9.50 75 PSI 8.385 lbs.
PF60X80A 60526080 6" 8" 4.50" 5.56" 11.00" 0.88" 8 9.50" 50 PSI -
PF80A 60528000 8" 8" 5.38" 7.80" 13.5" 0.88" 8 11.75" 50 PSI 11.89 lbs.
PF100A 60529000 10" 10" 6.60" 10.00" 16.00" 1.00" 12 14.25" 50 PSI 24 lbs.
PF120A 60529200 12" 12" 7.00" 11.40" 19.00" 1.00" 12 17.00" 50 PSI 35 lbs.

** Denotes that these parts are made as a welded fabrication.
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
