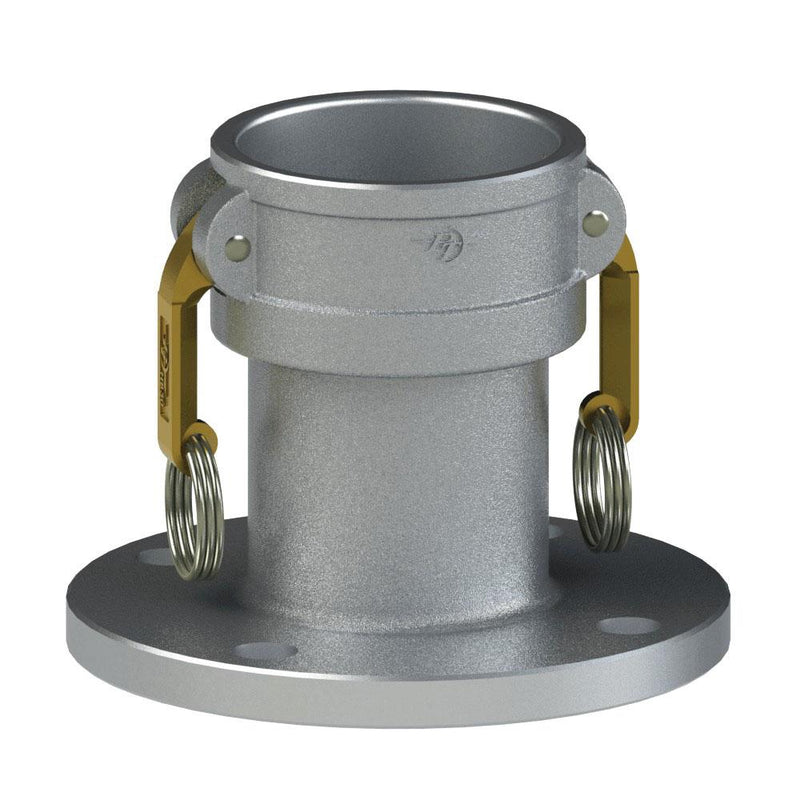

6054060 (PF40X60C) by PT-Coupling | Reducing Cam & Groove Adapter | Type PFC | 4" Coupler x 6" 150# Pipe Flange | Aluminum/HB

6054060 (PF40X60C) by PT-Coupling | Reducing Cam & Groove Adapter | Type PFC | 4" Coupler x 6" 150# Pipe Flange | Aluminum/HB

Save $367.02 Save $367.02
$988.75
$988.75 - $988.75
$988.75
$621.73
$621.73 - $621.73
$621.73

PT Coupling
Cam & Groove (Camlock) Adapter | Type PFC | Coupler x 150# Pipe Flange | Aluminum/HB

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Specifications for Variant SKU: 6054060 PT-Coupling
Shape (Orientation): Straight
Cam Type: Other
Ends Configuration: 4in Female Cam & Groove, 6in 150# Flange
Material(s): Aluminum
Features & Applications:
  • HB Cam Arms are made from Brass.
  • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
  • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Pipe Flange bolt pattern conforms to ANSI B16.5 Class 150.
  • Stainless Steel and Carbon Steel Flanges are raised face. Other materials are supplied with flat face flanges.
  • Made in the USA
Part
Name		 Item # Coupler
Size		 Flange
Size		 O. D. with
Cam Arms
Extended
(A)		 Overall
Length
(C)		 Inside
Diameter
(E)		 Outside
Diameter
(F)		 Bolt Hole
Diameter
(J)		 Number
of Holes
(K)		 Bolt Circle
Diameter
(L)		 Max. Allowable
Working Press.
(PSI)*
PF20C 6054000070 2" 2" 7.54" 5.82" 1.63" 6.00" 0.75" 4 4.75" 250 PSI
PF30C 6054000071 3" 3" 9.56" 5.82" 2.90" 7.50" 0.75" 4 6.00" 200 PSI
PF40C 6054000072 4" 4" 10.66" 5.39" 3.60" 9.00" 0.75" 8 7.50" 150 PSI
PF40X60C 6054060 4" 6" 10.66" 5.39" 3.60" 9.00" 0.75" 8 7.50" 75 PSI
PF60C 60546000 6" 6" 16.76" 7.75" 5.60" 11.00" 0.88" 8 9.50" 75 PSI
PF80C 6054000073 8" 8" 18.73" 7.64" 7.53" 13.50" 0.88" 8 11.75" 50 PSI
PF100C 60549000 10" 10" 23.00" 8.50" 9.40" 16.00" 1.00" 12 14.25" 50 PSI
PF120C 60549200 12" 12" 25.00" 8.50" 11.40" 19.00" 1.00" 12 12.00" 50 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
