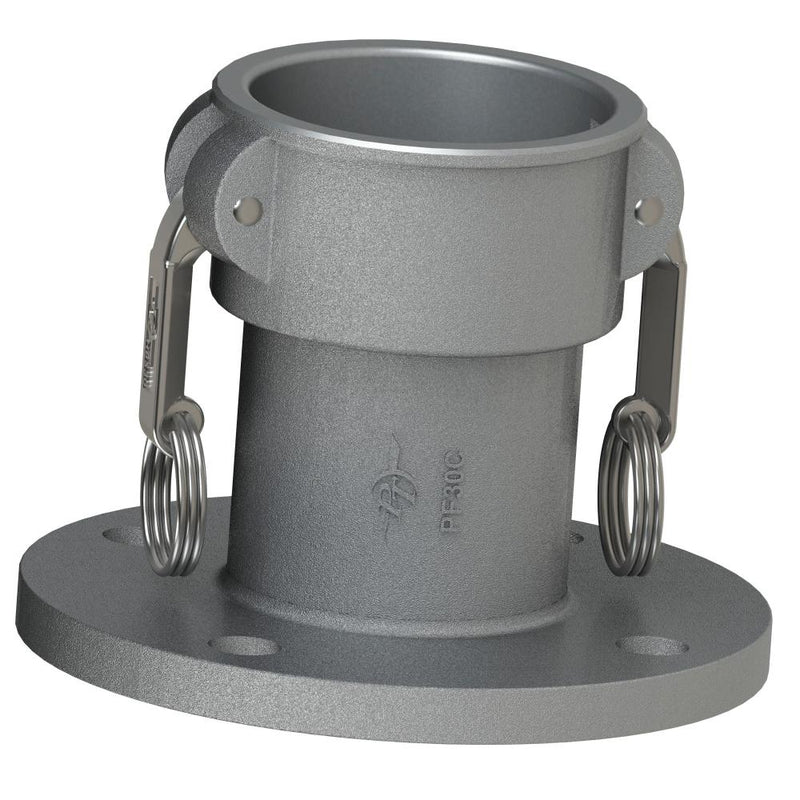

60543000 (PF30C) by PT-Coupling | Cam & Groove Adapter | Type PFC | 3" Coupler x 3" 150# Pipe Flange | Aluminum/HBS

60543000 (PF30C) by PT-Coupling | Cam & Groove Adapter | Type PFC | 3" Coupler x 3" 150# Pipe Flange | Aluminum/HBS

Save $83.15 Save $83.15
$224.02
$224.02 - $224.02
$224.02
$140.87
$140.87 - $140.87
$140.87

PT Coupling
Cam & Groove (Camlock) Adapter | Type PFC | Coupler x 150# Pipe Flange | Aluminum/HBS

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Specifications for Variant SKU: 60543000 PT-Coupling
Shape (Orientation): Straight
Cam Type: Other
Ends Configuration: 3in Female Cam & Groove, 3in 150# Flange
Material(s): Aluminum
Features & Applications:
  • HBS Cam Arms are made from 300 Series Stainless Steel.
  • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
  • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Pipe Flange bolt pattern conforms to ANSI B16.5 Class 150.
  • Stainless Steel and Carbon Steel Flanges are raised face. Other materials are supplied with flat face flanges.
  • Made in the USA
Part
Name		 Item # Coupler
Size		 Flange
Size		 O. D. with
Cam Arms
Extended
(A)		 Overall
Length
(C)		 Inside
Diameter
(E)		 Outside
Diameter
(F)		 Bolt Hole
Diameter
(J)		 Number
of Holes
(K)		 Bolt Circle
Diameter
(L)		 Max. Allowable
Working Press.
(PSI)*
PF20C 60542000 2" 2" 7.54" 5.82" 1.63" 6.00" 0.75" 4 4.75" 250 PSI
PF30C 60543000 3" 3" 9.56" 5.82" 2.90" 7.50" 0.75" 4 6.00" 200 PSI
PF40C 60544000 4" 4" 10.66" 5.39" 3.60" 9.00" 0.75" 8 7.50" 150 PSI
PF80C 60548000 8" 8" 18.73" 7.64" 7.53" 13.50" 0.88" 8 11.75" 50 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
