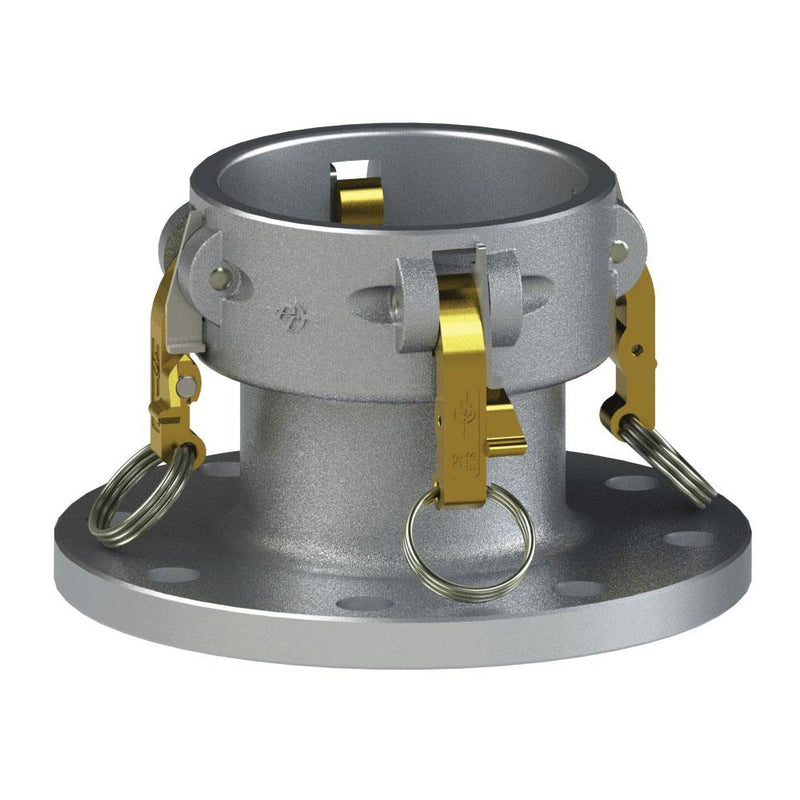

6054600H (PF60CHD) by PT-Coupling | Heavy Duty Cam & Groove Adapter | Type PFC | 6" Coupler x 6" 150# Pipe Flange | Aluminum

6054600H (PF60CHD) by PT-Coupling | Heavy Duty Cam & Groove Adapter | Type PFC | 6" Coupler x 6" 150# Pipe Flange | Aluminum

Save $179.14 Save $179.14
$482.58
$482.58 - $482.58
$482.58
$303.44
$303.44 - $303.44
$303.44

PT Coupling
Heavy Duty Cam & Groove (Camlock) Adapter | Type PFC | Coupler x 150# Pipe Flange | Aluminum

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Specifications for Variant SKU: 6054600H PT-Coupling
Shape (Orientation): Straight
Cam Type: Other
Ends Configuration: 6in Female Cam & Groove, 6in 150# Flange
Material(s): Aluminum
Features & Applications:
  • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
  • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Pipe Flange bolt pattern conforms to ANSI B16.5 Class 150.
  • Stainless Steel and Carbon Steel Flanges are raised face. Other materials are supplied with flat face flanges.
  • Made in the USA
Part
Name		 Item # Heavy Duty
Coupler Size		 Flange
Size		 Max. Allowable
Working Press.
(PSI)*
PF60CHD 6054600H 6" 6" 75 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
