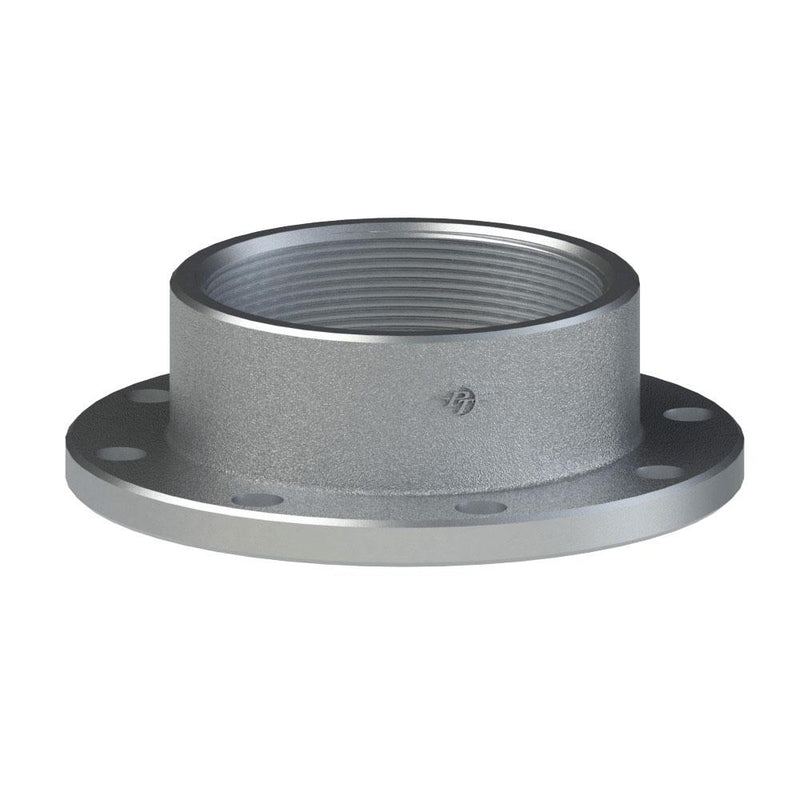

60553000 (TTF30NPTF) by PT-Coupling | Petroleum Handling TTMA Flange | Type TTFNPTF | 3" Female NPT x 3" TTMA Flange | Aluminum

60553000 (TTF30NPTF) by PT-Coupling | Petroleum Handling TTMA Flange | Type TTFNPTF | 3" Female NPT x 3" TTMA Flange | Aluminum

Save $23.07 Save $23.07
$62.12
$62.12 - $62.12
$62.12
$39.05
$39.05 - $39.05
$39.05

PT Coupling
Petroleum Handling TTMA Flange | Type TTFNPTF | Female NPT x TTMA Flange | Aluminum

PT Coupling’s petroleum handling fittings support all stages of fuel production and transport, from refining to tank trucks. Also compatible with bio-fuel applications.

Made in the USA.
Specifications for Variant SKU: 60553000 PT-Coupling
Series: Petroleum Handling
Shape (Orientation): Straight
Ends Configuration: 3in Female NPT, 3in TTMA Flange
Material(s): Aluminum
Overview:
  • PT Coupling's petroleum handling fittings are used in all phases of petroleum manufacturing, transportation and logistics. They serve important roles in fuel transportation, from refining applications to tank trucks, and much more. They are also suited to work with the emerging bio-fuel industry.
Features & Applications:
  • Tank Truck Flanges conform to (TTMA) Truck Trailer Manufacturers Assoc. standards.
  • Aluminum:
    • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
    • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Stainless Steel:
    • Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass.
    • Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants.
  • Made in the USA
Part
Name		 Item # Material Female NPT
Thread		 TTMA Flange
Size		 Max. Allowable
Working Press.
(PSI)*
TTF30NPTF 60553000 Aluminum 3" 3" 200 PSI
TTF40NPTF 60554000 Aluminum 4" 4" 150 PSI

TTF30NPTF 64553000 Stainless Steel 3" 3" 200 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
