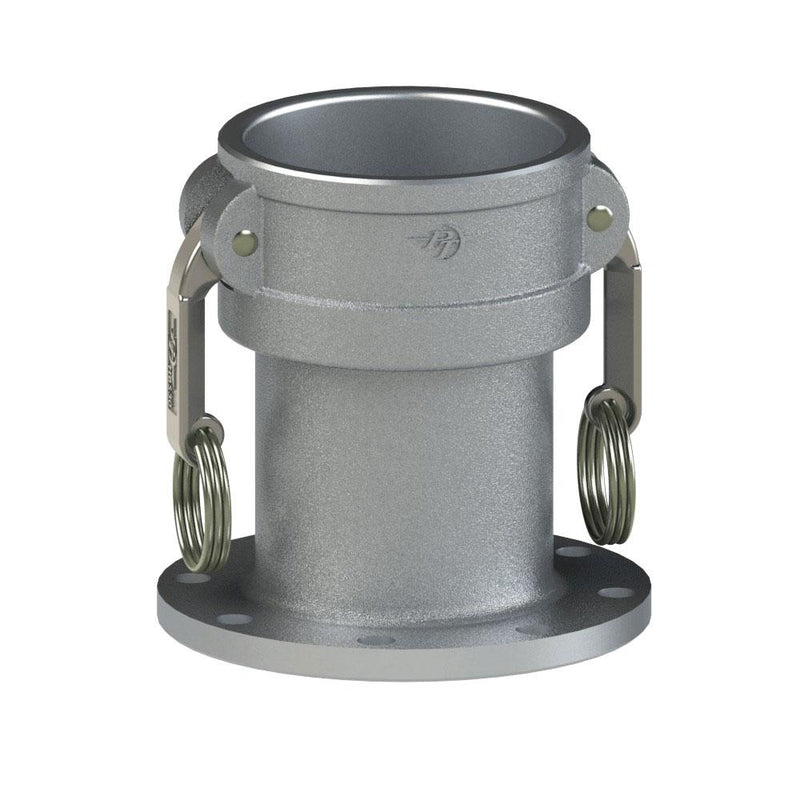

60583000 (TTF30C) by PT-Coupling | Petroleum Handling Cam & Groove Adapter | Type TTFC | 3" Coupler x 3" TTMA Flange | Aluminum/HBS

60583000 (TTF30C) by PT-Coupling | Petroleum Handling Cam & Groove Adapter | Type TTFC | 3" Coupler x 3" TTMA Flange | Aluminum/HBS

Save $50.28 Save $50.28
$135.47
$135.47 - $135.47
$135.47
$85.19
$85.19 - $85.19
$85.19

PT Coupling
Petroleum Handling Cam & Groove (Camlock) Adapter | Type TTFC | Coupler x TTMA Flange | Aluminum/HBS

PT Coupling’s petroleum handling fittings support all stages of fuel production and transport, from refining to tank trucks. Also compatible with bio-fuel applications.

Made in the USA.
Specifications for Variant SKU: 60583000 PT-Coupling
Series: Petroleum Handling
Shape (Orientation): Straight
Cam Type: Other
Ends Configuration: 3in Female Cam & Groove, 3in TTMA Flange
Material(s): Aluminum
Overview:
  • PT Coupling's petroleum handling fittings are used in all phases of petroleum manufacturing, transportation and logistics. They serve important roles in fuel transportation, from refining applications to tank trucks, and much more. They are also suited to work with the emerging bio-fuel industry.
Features & Applications:
  • Has cam arms made of Stainless Steel
  • Tank Truck Flanges conform to (TTMA) Truck Trailer Manufacturers Assoc. standards.
  • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
  • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA
Part
Name		 Item # Coupler
Size		 Flange
Size
(TTMA)		 O. D. with
Cam Arms
Extended
(A)		 Overall
Length
(C)		 Inside
Diameter
(E)		 Outside
Diameter
(F)		 Bolt Hole
Diameter
(J)		 Number
of Holes
(K)		 Bolt Circle
Diameter
(L)		 Max. Allowable
Working Press.
(PSI)*
TTF20C 60582000 2" 2" 7.54" 5.63" 2.00" 4.50" 0.44" 6 3.75" 250 PSI
TTF30C 60583000 3" 3" 9.56" 5.66" 2.90" 5.63" 0.44" 8 4.88" 200 PSI
TTF30X40C 60583040 3" 4" 9.56" 5.66" 2.90" 5.63" 0.44" 8 4.88" 150 PSI
TTF40C 60584000 4" 4" 10.66" 5.68" 3.60" 6.63" 0.44" 8 5.88" 150 PSI

* Above maximum allowable working pressures are based on operating temperatures less than 100°F.
