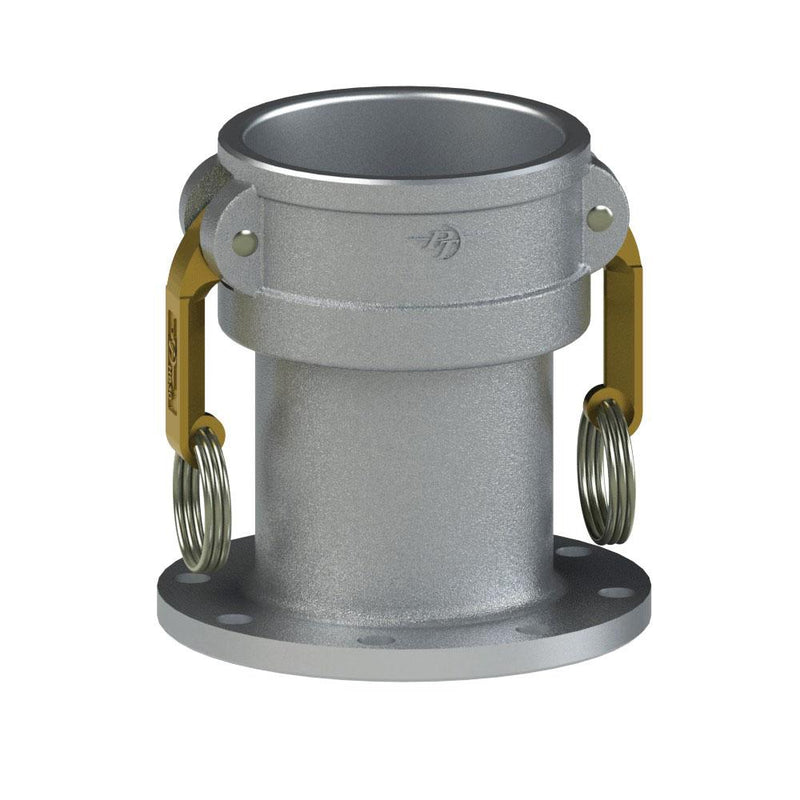

60586000 (TTF60C) by PT-Coupling | Petroleum Handling Cam & Groove Adapter | Type TTFC | 6" Coupler x 6" TTMA Flange | Aluminum/HB

60586000 (TTF60C) by PT-Coupling | Petroleum Handling Cam & Groove Adapter | Type TTFC | 6" Coupler x 6" TTMA Flange | Aluminum/HB

Save $151.20 Save $151.20
$407.33
$407.33 - $407.33
$407.33
$256.13
$256.13 - $256.13
$256.13

PT Coupling
Petroleum Handling Cam & Groove (Camlock) Adapter | Type TTFC | Coupler x TTMA Flange | Aluminum/HB

PT Coupling’s petroleum handling fittings support all stages of fuel production and transport, from refining to tank trucks. Also compatible with bio-fuel applications.

Made in the USA.
Specifications for Variant SKU: 60586000 PT-Coupling
Series: Petroleum Handling
Shape (Orientation): Straight
Cam Type: Other
Ends Configuration: 6in Female Cam & Groove, 6in TTMA Flange
Material(s): Aluminum
Overview:
  • PT Coupling's petroleum handling fittings are used in all phases of petroleum manufacturing, transportation and logistics. They serve important roles in fuel transportation, from refining applications to tank trucks, and much more. They are also suited to work with the emerging bio-fuel industry.
Features & Applications:
  • Has cam arms made of Brass
  • Tank Truck Flanges conform to (TTMA) Truck Trailer Manufacturers Assoc. standards.
  • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
  • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA
Part
Name		 Item # Coupler
Size		 Flange
Size
(TTMA)		 O. D. with
Cam Arms
Extended
(A)		 Overall
Length
(C)		 Inside
Diameter
(E)		 Outside
Diameter
(F)		 Bolt Hole
Diameter
(J)		 Number
of Holes
(K)		 Bolt Circle
Diameter
(L)		 Max. Allowable
Working Press.
(PSI)*
TTF30C 6058000074 3" 3" 9.56" 5.66" 2.90" 5.63" 0.44" 8 4.88" 200 PSI
TTF30X40C 6058000075 3" 4" 9.56" 5.66" 2.90" 5.63" 0.44" 8 4.88" 150 PSI
TTF40C 6058000076 4" 4" 10.66" 5.68" 3.60" 6.63" 0.44" 8 5.88" 150 PSI
TTF60C 60586000 6" 6" 16.26" 7.25" 5.60" 8.88" 0.44" 12 8.13" 75 PSI

* Above maximum allowable working pressures are based on operating temperatures less than 100°F.
