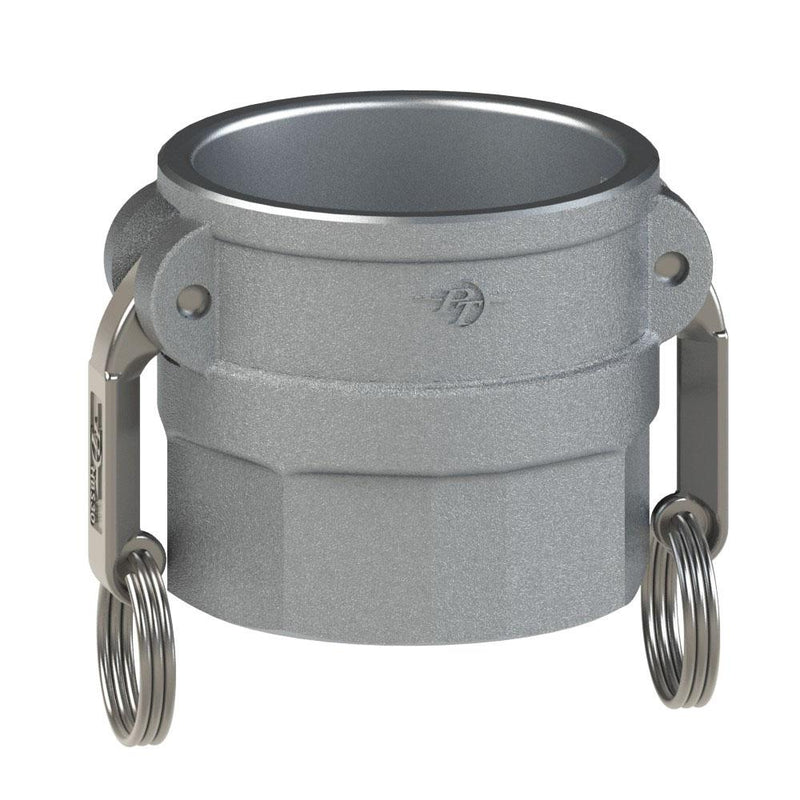

60622501 (25DWS) by PT-Coupling | Cam & Groove Adapter | Type DWS | 2-1/2" Coupler x Socket Weld for Tube | Aluminum/HBS

60622501 (25DWS) by PT-Coupling | Cam & Groove Adapter | Type DWS | 2-1/2" Coupler x Socket Weld for Tube | Aluminum/HBS

Save $26.08 Save $26.08
$70.27
$70.27 - $70.27
$70.27
$44.19
$44.19 - $44.19
$44.19

PT Coupling
Cam & Groove (Camlock) Adapter | Type DWS | Coupler x Socket Weld for Tube | Aluminum/HBS

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Specifications for Variant SKU: 60622501 PT-Coupling
Shape (Orientation): Straight
Cam Type: Other
Ends Configuration: 2-1/2in Female Cam & Groove, 2-1/2in Weld End
Material(s): Aluminum
Features & Applications:
  • HBS cam arms are made of 300 series Stainless Steel.
  • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
  • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA
Part
Name		 Item # Size O. D. with
Cam Arms
Extended
(A)		 Outside
Diameter
(B)		 Inside
Diameter
(C)		 Overall
Length
(D)		 Socket
Depth
(E)		 Socket
Diameter
(F)		 Max. Allowable
Working Press.
(PSI)*
25DWS 60622501 2-1/2" 8.03" 4.43" 2.38" 3.40" 0.70" 2.52" 200 PSI
40DWS 60624001 4" 10.66" 6.56" 3.60" 3.90" 0.70" 4.03" 150 PSI
50DWS 60625003 5" 11.67" 7.57" 4.50" 4.20" 0.90" 5.03" 75 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
