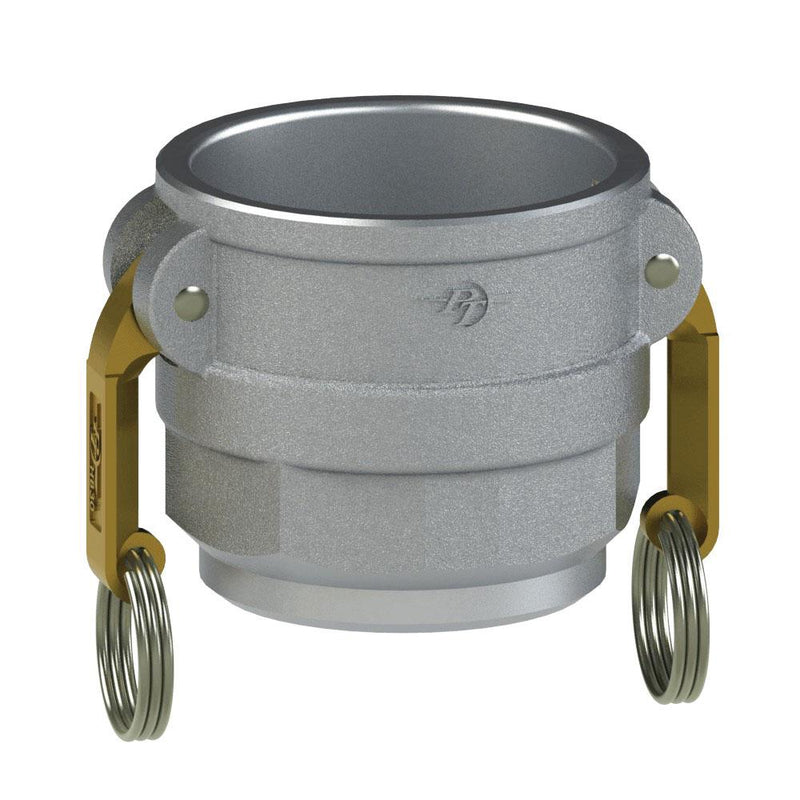

60624011 (40DWB) by PT-Coupling | Cam & Groove Adapter | Type DWB | 4" Coupler x Butt Weld for .065 Tube | Aluminum

Name: 60624011 (40DWB) by PT-Coupling | Cam & Groove Adapter | Type DWB | 4" Coupler x Butt Weld for .065 Tube | Aluminum
Brand: PT-Coupling
SKU: 60624011 PT-Coupling
Price: 69.61 USD
Availability: InStock

Save $41.11

$110.72

$110.72 - $110.72

$110.72

$69.61

$69.61 - $69.61

$69.61

PT Coupling
Cam & Groove (Camlock) Adapter | Type DWB | Coupler x Butt Weld for .065 Tube | Aluminum

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 60624011 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Other
Ends Configuration:	4in Female Cam & Groove, 4in Weld End
Material(s):	Aluminum

Features & Applications:
Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance. Use with water, hydraulic oil, coolants, gasoline, and petroleum products. Made in the USA


Part Name	Item #	Size	O. D. with Cam Arms Extended (A)	Outside Diameter (B)	Inside Diameter (C)	Overall Length (D)	Max. Allowable Working Press. (PSI)*
40DWB	60624011	4"	10.66"	6.56"	3.50"	4.00"	150 PSI
50DWB	60625014	5"	11.67"	7.57"	4.50"	4.20"	75 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
