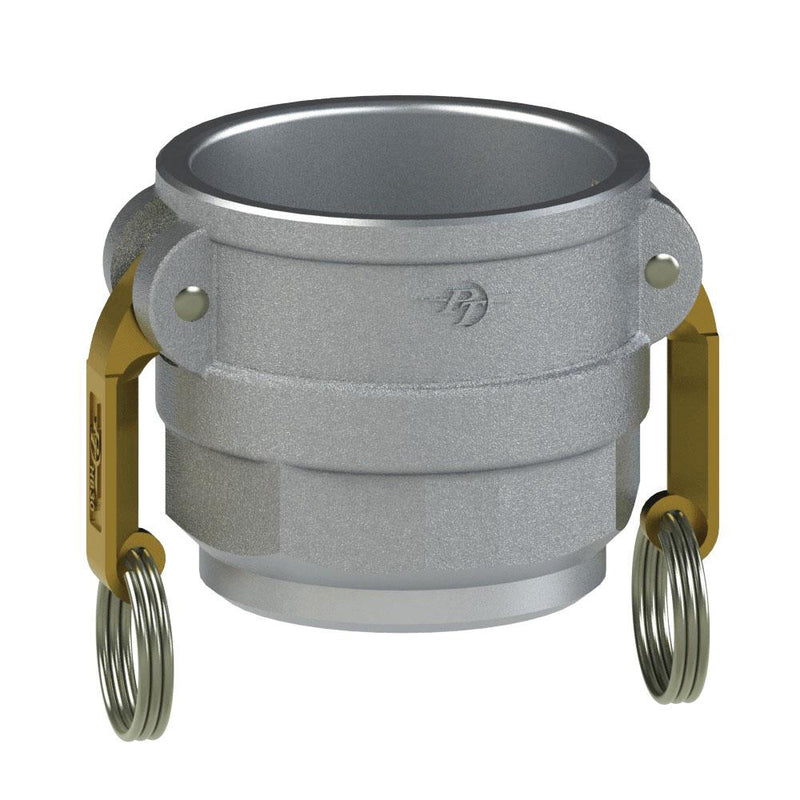

60625014 (50DWB) by PT-Coupling | Cam & Groove Adapter | Type DWB | 5" Coupler x Butt Weld for .065 Tube | Aluminum

60625014 (50DWB) by PT-Coupling | Cam & Groove Adapter | Type DWB | 5" Coupler x Butt Weld for .065 Tube | Aluminum

Save $162.27 Save $162.27
$437.15
$437.15 - $437.15
$437.15
$274.88
$274.88 - $274.88
$274.88

PT Coupling
Cam & Groove (Camlock) Adapter | Type DWB | Coupler x Butt Weld for .065 Tube | Aluminum

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Specifications for Variant SKU: 60625014 PT-Coupling
Shape (Orientation): Straight
Cam Type: Other
Ends Configuration: 5in Female Cam & Groove, 5in Weld End
Material(s): Aluminum
Features & Applications:
  • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
  • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA
Part
Name		 Item # Size O. D. with
Cam Arms
Extended
(A)		 Outside
Diameter
(B)		 Inside
Diameter
(C)		 Overall
Length
(D)		 Max. Allowable
Working Press.
(PSI)*
40DWB 60624011 4" 10.66" 6.56" 3.50" 4.00" 150 PSI
50DWB 60625014 5" 11.67" 7.57" 4.50" 4.20" 75 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
