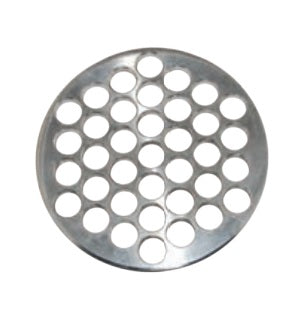

60954002 (40P) by PT-Coupling | Pump Filter | 4" Size | 0.38" Hole | Aluminum

60954002 (40P) by PT-Coupling | Pump Filter | 4" Size | 0.38" Hole | Aluminum

Save $27.59 Save $27.59
$74.35
$74.35 - $74.35
$74.35
$46.76
$46.76 - $46.76
$46.76

PT Coupling
Petroleum Handling | Pump Filter | Aluminum

Threads into bottom of female NPT thread to protect equipment from large contaminants.

Made in the USA.
Specifications for Variant SKU: 60954002 PT-Coupling
Material(s): Aluminum
Overview:
  • PT Coupling's petroleum handling fittings are used in all phases of petroleum manufacturing, transportation and logistics. They serve important roles in fuel transportation, from refining applications to tank trucks, and much more. They are also suited to work with the emerging bio-fuel industry.
Features & Applications:
  • Threads into bottom of female NPT thread to protect equipment from large contaminants.
  • Standard hole size is 1/4"
  • Aluminum:
    • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
    • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Stainless Steel:
    • Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass.
    • Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants.
  • Made in the USA
Part
Name		 Item # Material Size Hole Size
15P 60951500 Aluminum 1-1/2" 0.25"
20P 60952000 Aluminum 2" 0.25"
30P 60953000 Aluminum 3" 0.25"
40P 60954000 Aluminum 4" 0.25"
40P 60954002 Aluminum 4" 0.38"
40P 60954001 Aluminum 4" 0.50"

20P 64952000 Stainless Steel 2" 0.25"
30P 64953000 Stainless Steel 3" 0.25"
40P 64954000 Stainless Steel 4" 0.25"
40P 64954001 Stainless Steel 4" 0.50"
PT-Coupling

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.

Shop Parts by PT-Coupling
