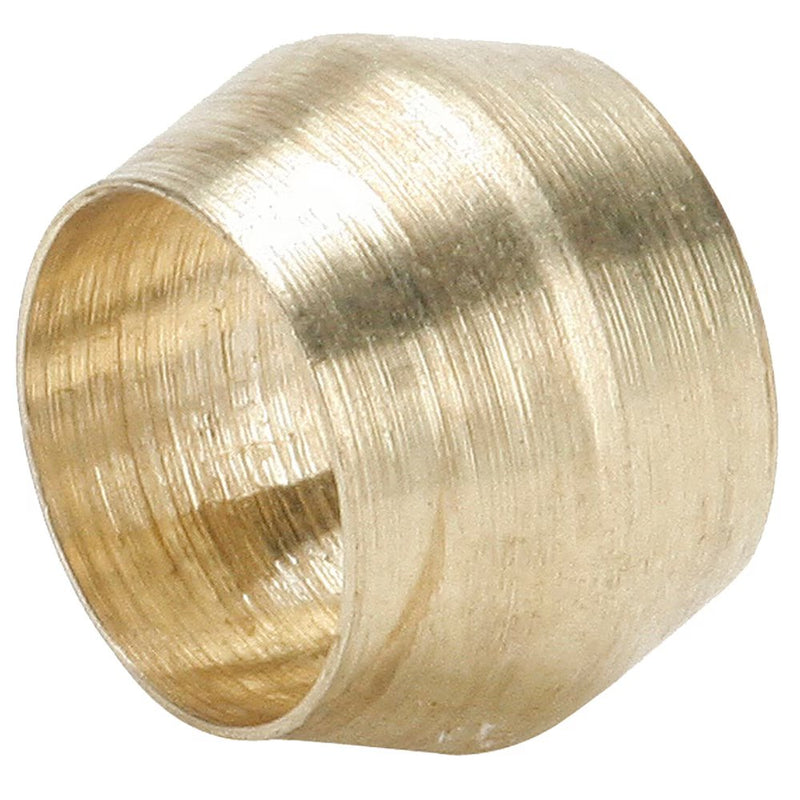

60C-10 by Parker | Compression Fitting | 5/8" Sleeve | Straight | Brass | Pack of 100

Save $20.16

$145.49

$145.49 - $145.49

$145.49

$125.33

$125.33 - $125.33

$125.33

by Parker Hannifin
Compression Fittings:Sleeve 60C

Package Quantity: 100 Units

Specifications for Variant SKU: 60C-10 Parker \| 100 \|
Series:	60C Series
Shape (Orientation):	Straight
Material(s):	Brass
Special Properties:	UL Listed

Specification:
Product Features:	Meets functional requirements of SAE J-512 UL Listed for flammable liquid Brass or acetal sleeve available No tube preparation Forged and extruded shapes
Markets:	Industrial Packaging Pneumatic Printing
Applications:	Air lines Lubrication Lines Cooling lines Industry Machinery Compressors Fluid transfer
Pressure Range:	See Chart Below

Temperature Range:	-65° to +250° F (- 53.8° to +121.1° C)
Compatible Tubing:	Copper Aluminum Thermoplastic tubing


Part Number	Tube Size	A	D	L
60C-2	1/8"	.187"	.130"	.19"
60C-3	3/16"	.266"	.192"	.22"
60C-4	1/4"	.344"	.255"	.25"
60C-5	5/16"	.406"	.318"	.25"
60C-6	3/8"	.469"	.382"	.25"
60C-7	7/16"	.531"	.444"	.31"
60C-8	1/2"	.594"	.507"	.38"
60C-10	5/8"	.719"	.632"	.38"
60C-12	3/4"	.875"	.758"	.44"
60C-14	7/8"	1.000"	.883"	.41"
