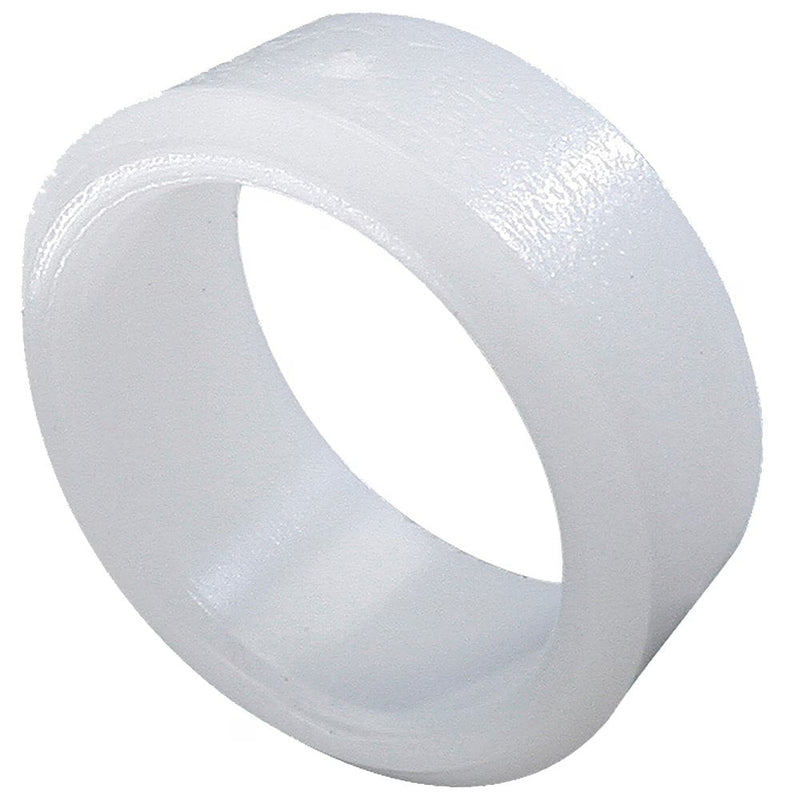

60PT-10 by Parker | Compression Fitting | 5/8" Sleeve | Straight | Acetal | Pack of 100

Save $8.10

$89.06

$89.06 - $89.06

$89.06

$80.96

$80.96 - $80.96

$80.96

by Parker Hannifin
Compression Fittings:Acetal Sleeve 60PT

Package Quantity: 100 Units

Quantity

Specifications for Variant SKU: 60PT-10 Parker \| 100 \|
Series:	60PT Series
Shape (Orientation):	Straight
Material(s):	Acetal
Special Properties:	UL Listed

Specification:
Product Features:	Meets functional requirements of SAE J-512 UL Listed for flammable liquid Brass or acetal sleeve available No tube preparation Forged and extruded shapes
Markets:	Industrial Packaging Pneumatic Printing
Applications:	Air lines Lubrication Lines Cooling lines Industry Machinery Compressors Fluid transfer
Pressure Range:	See Chart Below

Temperature Range:	-65° to +250° F (- 53.8° to +121.1° C)
Compatible Tubing:	Copper Aluminum Thermoplastic tubing


Part Number	Plastic Tube Wall	Tube Wall	A	D	L
60PT-4	1/4"	.040"	.375"	.254"	.19"
60PT-5	5/16"	.062"	.438"	.317"	.19"
60PT-6	3/8"	.062"	.500"	.379"	.19"
60PT-8	1/2"	.062"	.631"	.507"	.25"
60PT-10	5/8"	.062"	.747"	.632"	.22"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.

Shop Parts by Parker Fluid System Connectors Division
