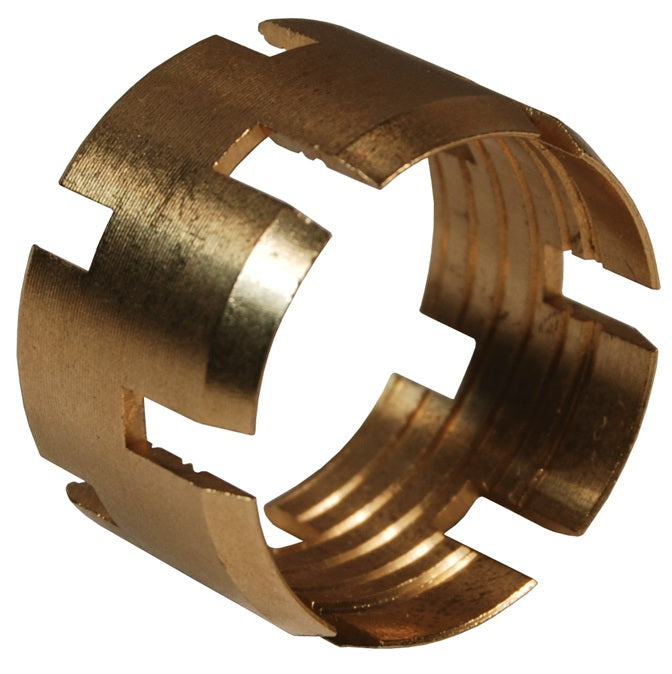

60RB-06 by Dixon Valve | Air Brake Fitting for Rubber Hose | Sleeve | 3/8" Hose OD | 0.64" Length | Brass Alloy 360

Save $1.18

$2.95

$2.95 - $2.95

$2.95

$1.77

$1.77 - $1.77

$1.77

Dixon Valve & Coupling
Air Brake Fitting for Rubber Hose | Sleeve

For use with SAEJ1402 air brake hose in making hose assemblies

Specifications for Variant SKU: 60RB-06 Dixon
Series:	60RB Series
Material(s):	Brass

Use:
Recommended tubing: Polyethylene, Polyurethane 95A Durometer.
Features:
Utilize ribbed sleeve for compression and positive grip.
Construction:
Brass Alloy 360
Specifications:
Working pressure: up to 225 PSI Temperature: -50°F to 212°F (-46° to 100°C)
Approvals:
Will meet D.O.T. FMVSS 571-106 standards when used with SAE J1402 air brake hose.
Assembly Instructions:
1. Slide nut onto hose. 2. Slide sleeve onto hose with tapered edge toward fitting body. 3. Firmly bottom the hose into fittings. 4. Screw nut onto body until it contacts the fittings body's hex.

Part Number	Hose Size	Length
60RB-06	3/8"	0.64"
60RB-08	1/2"	0.64"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
