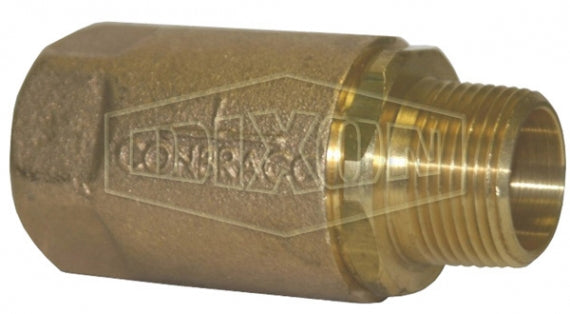

61-204 by Dixon Valve | Domestic Ball Cone Check Valve | 3/4" Male NPT x 3/4" Female NPT | Brass

61-204 by Dixon Valve | Domestic Ball Cone Check Valve | 3/4" Male NPT x 3/4" Female NPT | Brass

Save $59.23 Save $59.23
$148.08
$148.08 - $148.08
$148.08
$88.85
$88.85 - $88.85
$88.85

Dixon Valve & Coupling
Domestic Ball Cone Check Valve

For use with water, oil, or inert gases.
Specifications for Variant SKU: 61-204 Dixon
Shape (Orientation): Straight
Ends Configuration: 3/4in Male NPT, 3/4in Female NPT
Material(s): Brass
Features:
  • Tight shutoff with liquid media.
  • No radial alignment necessary.
  • Straight through and streamlined for minimum change in velocity.
  • Reinforced PTFE check is spring loaded for fast seating action.
Specifications:
  • Pressure rating: 400 PSI WOG, cold non-shock; 125 PSI saturated steam.
  • Cracking pressure: .5 PSI
  • Temperature range: -20°F to 353°F (-29°C to 178°C)
Note:
  • Not recommended for use on or near reciprocating pumps or other similar vibration causing machinery.
Pressure Ratings
Temperature Pressure WOG (PSI)
-20°F to 100°F (-29°C to 38°C) 400 PSI
200°F (93°C) 200 PSI
250°F (121°C) 160 PSI
275°F (135°C) 150 PSI
300°F (149°C) 140 PSI
325°F (163°C) 130 PSI
353°F (178°C) 125 PSI
Brass
Part Number		 Male NPT x Female NPT
61-201 1/4" x 1/4"
61-202 3/8" x 3/8"
61-203 1/2" x 1/2"
61-204 3/4" x 3/4"
61-205 1" x 1"
61-206 1-1/4" x 1-1/4"
61-207 1-1/2" x 1-1/2"
61-208 2" x 2"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
