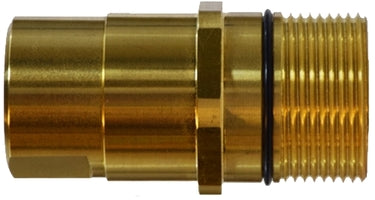

61054 (61-054) Midland Hydraulic Quick Disconnect - Wing Nut 3000 Drybreak No Spill Nipple - 1-1/4" Body - 1-1/4" Female NPT - Brass

61054 by Midland | Hydraulic Quick Disconnect | Wing Nut Drybreak No Spill Nipple | 1-1/4" Body | 1-1/4" Female NPT | 3000 PSI | Brass

Save $52.33

$130.83

$130.83 - $130.83

$130.83

$78.50

$78.50 - $78.50

$78.50

Midland Industries
Hydraulic Quick Disconnects: Wing Nut Thread to Connect, Drybreak No-Spill Quick Connect

Specifications for Variant SKU: 61054 Midland
Shape (Orientation):	Straight
Ends Configuration:	1-1/4in Male ISO-7241 Wing Nut QD Interchange, 1-1/4in Female NPT
Material(s):	Brass

Features:
Wing Nut Body: Brass Body Steel Wing Nut Buna-Seal ( -40° to +250°F) Wing Nut Nipple: Bonded Face Seal External O-Ring Alleviates Full Connection

Interchanges:
Aeroquip 5100	Parker 6100	Snaptite B78

Wing Nut Body				Wing Nut Nipple

Part Number	Body Size	Female NPT	Max PSI	Part Number	Body Size	Female NPT	Max PSI
61150 (61-150)	3/4"	1/2"	3000	61050 (61-050)	3/4"	1/2"	3000
61152 (61-152)	3/4"	3/4"	3000	61052 (61-052)	3/4"	3/4"	3000
61153 (61-153)	1"	1"	3000	61053 (61-053)	1"	1"	3000
61154 (61-154)	1-1/4"	1-1/4"	2750	61054 (61-054)	1-1/4"	1-1/4"	2750
61155 (61-155)	1-1/2"	1-1/2"	-	61055 (61-055)	1-1/2"	1-1/2"	-
