611270 (611-270) Midland Metal Hose Band Clamp - 611 Series - 1/2" Width - ID Range: 15-3/8" to 17-3/8" - 201 Stainless Steel Band / Carbon Steel Screw

611270 by Midland | Metal Hose Band Clamp | 611 Series | 1/2" Width | ID Range: 15-3/8" to 17-3/8" | 201 Stainless Steel Band / Carbon Steel Screw

Save $5.46

$13.65

$13.65 - $13.65

$13.65

$8.19

$8.19 - $8.19

$8.19

Midland Industries

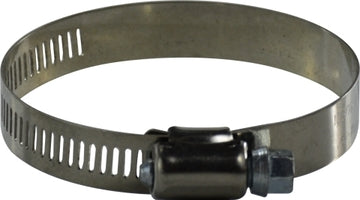

Metal Hose Miniature Worm Gear Clamp - 611 Series

The perfect clamp for automobiles, plumbing, home and garden general clamping applications, with anti-corrosive properties varying with the number of components made from stainless steel.

Specifications for Variant SKU: 611270 Midland
Material(s):	201 Stainless Steel, Carbon Steel
Clamp Width:	0.5
Minimum Clamp I.D.:	15.375
Maximum Clamp I.D.:	17.375

Features:
5/16" Hex Slotted Carbon Steel Screw 1/2" Wide 201 Stainless Steel Band 301 Stainless Steel Housing No PSI Rating 50lb/ Inch Torque Rating Die Set Function

Part Number	#	Diameter Range:
Part Number	#	Min.	Max.
611006 (611-006)	6	3/8"	7/8"
611008 (611-008)	8	7/16"	1"
611010 (611-010)	10	9/16"	1-1/16"
611012 (611-012)	12	9/16"	1-1/4"
611016 (611-016)	16	11/16"	1-1/2"
611020 (611-020)	20	3/4"	1-3/4"
611024 (611-024)	24	1-1/16"	2"
611028 (611-028)	28	1-5/16"	2-1/4"
611032 (611-032)	32	1-9/16"	2-1/2"
611036 (611-036)	36	1-13/16"	2-3/4"
611040 (611-040)	40	2-1/16"	3"
611044 (611-044)	44	2-5/16"	3-1/4"
611048 (611-048)	48	2-9/16"	3-1/2"
611052 (611-052)	52	2-13/16"	3-3/4"
611056 (611-056)	56	3-1/16"	4"
611060 (611-060)	60	3-5/16"	4-1/4"
611064 (611-064)	64	2-1/2"	4-1/2"
611072 (611-072)	72	3"	5"
611080 (611-080)	80	3-1/2"	5-1/2"
611088 (611-088)	88	4"	6"
611096 (611-096)	96	4-1/2"	6-1/2"
611104 (611-104)	104	5"	7"
611116 (611-116)	116	5-3/4"	7-3/4"
611128 (611-128)	128	6-1/2"	8-1/2"
611152 (611-152)	152	2"	10"
611164 (611-164)	164	1-3/4"	10-3/4"
611176 (611-176)	176	9-1/4"	11-1/4"
611188 (611-188)	188	2-1/16"	12-1/4"
611200 (611-200)	200	11"	13"
611212 (611-212)	212	11-3/4"	13-3/4"
611224 (611-224)	224	12-1/2"	14-1/2"
611248 (611-248)	248	10-3/4"	16"
611270 (611-270)	270	15-3/8"	17-3/8"
611312 (611-312)	312	18"	20"
611332 (611-332)	332	19-1/8"	21-1/4"
611390 (611-390)	390	22-7/8"	24-7/8"
