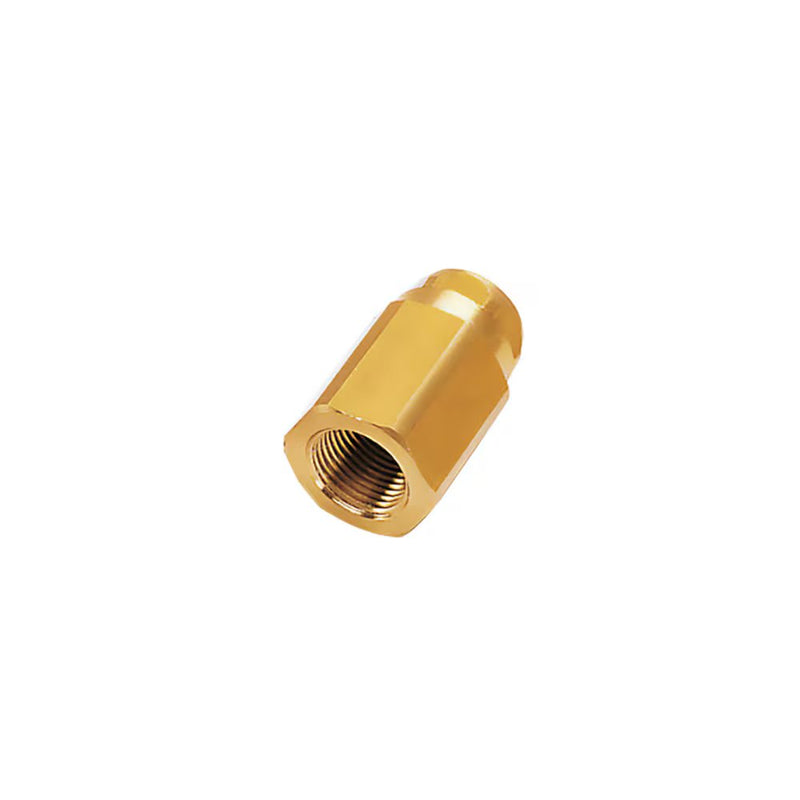

6114 04 56 by Parker | Legris Stud Fitting | 4 mm Tube Size x M8x1 Female M8 Metric Thread | 13 mm Hex | Straight | Brass | Pack of 10

Save $23.29

$186.49

$186.49 - $186.49

$186.49

$163.20

$163.20 - $163.20

$163.20

by Parker Hannifin
LF 6100® Push-In Fittings:6114 Stud Fitting, Female Metric Parallel Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 6114 04 56 Parker \| 10 \|
Series:	6114 Series
Shape (Orientation):	Straight
Material(s):	Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free

Technical Characteristics:	Compatible Fluids: Lubricants, compressed air, vacuum, other fluids and compatible gases. Working Pressure: Vacuum to 60 bar. Working Temperature: -40°C to +120°C
Advantages:	Sealing guaranteed by 3 seals Tube cannot be disconnected without the use of a spanner Up to 60 bar, with rigid polymer or grooved metal tubing.
Regulations:	RoHS REACH PED
Component Materials:	Body: Brass Spring collet: Brass Gripping teeth or collet: Brass Seals: EPDM


Part Number	ØD	C	E	F1	F2	H	Kg
6114 04 56	4 mm	M8x1	8 mm	13 mm	11 mm	25.5 mm	.021 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
