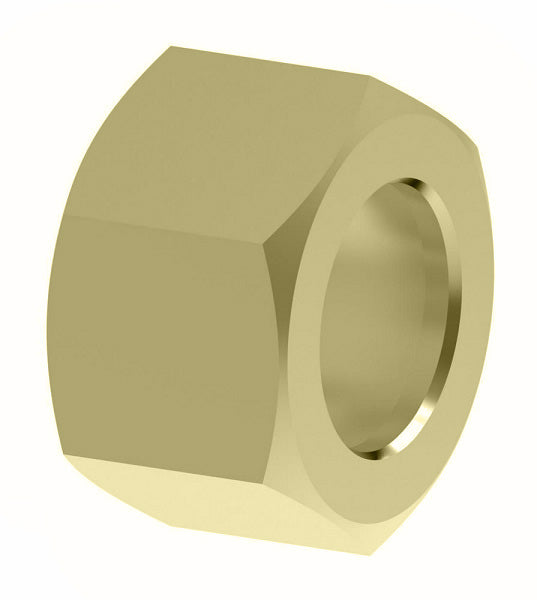

611X4 by Danfoss | SelfAlign Adapter | Nut | 1/4" Tube OD | Brass
611X4 by Danfoss | SelfAlign Adapter | Nut | 1/4" Tube OD | Brass
611X4 by Danfoss | SelfAlign Adapter | Nut | 1/4" Tube OD | Brass
611X4 by Danfoss | SelfAlign Adapter | Nut | 1/4" Tube OD | Brass

611X4 by Danfoss | SelfAlign Adapter | Nut | 1/4" Tube OD | Brass

$0.52 - $0.52
$0.52
$0.52 - $0.52
$0.52

Aeroquip® by Danfoss
SelfAlign Adapter - Nut
Specifications for Variant SKU: 611X4 Danfoss
Shape (Orientation): No Orientation
Material(s): Brass
Applications:
  • Instrumentation, hydraulic and pneumatic systems.
Advantages:
  • Very low cost and reusable.
  • Self aligning - no need to disassemble fitting to line up sleeve on tube.
  • Low cost.
  • Easy to assemble, no flaring.
  • Good vibration resistance - use long nut when greater vibration resistance is needed.
Used With:
  • Aluminum, copper and plastic tubing.
  • Plastic tubing, except for PT230 and TP160, requires 2030x insert.
  • Not recommended for steel tubing.
Material:
  • CA360 Brass
Pressure:
  • Working pressure up to 2000 psi with a 4:1 safety factor depending on tube size.
  • When using plastic tubing, use the working pressure for type used.
Temperature Range:
  • -65°F to +250°F (-53°C to +121°C) with metal tubing.
  • When using compatible plastic tubing do not exceed the tubing temperature range.
Conformance:
  • An exclusive product design, user approvals only
Brass
Part Number 		Tube O.D. Hex
C		 D L
611X2 1/8" 3/8" 0.14" 0.38"
611X3 3/16" 7/16" 0.19" 0.38"
611X4 1/4" 1/2" 0.26" 0.44"
611X5 5/16" 9/16" 0.32" 0.44"
611X6 3/8" 5/8" 0.38" 0.44"
611X8 1/2" 13/16" 0.51" 0.52"
611X10 5/8" 15/16" 0.64" 0.56"
611X12 3/4" - - -
