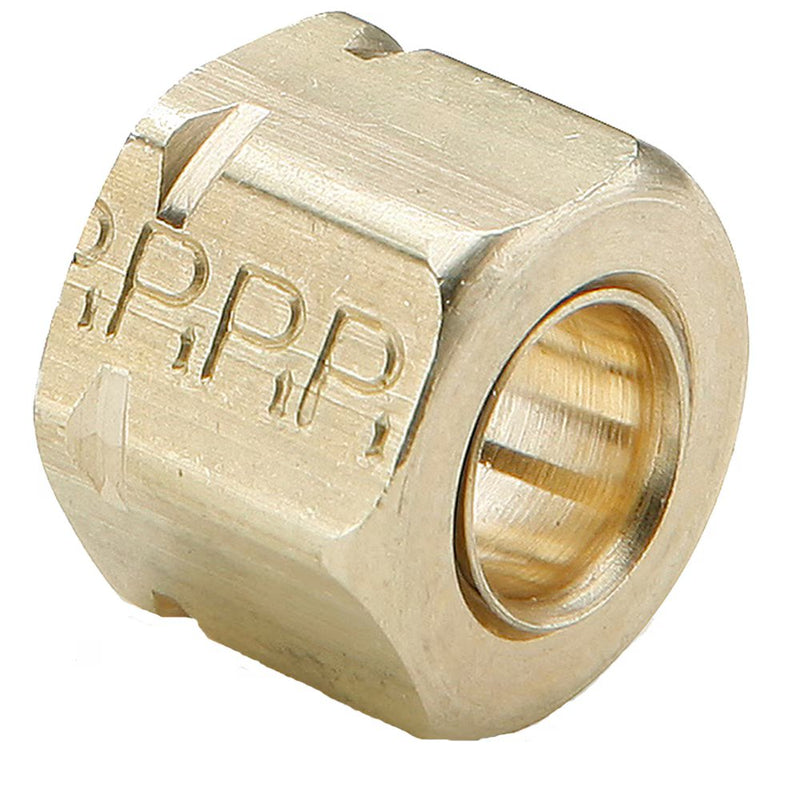

61CA-16 by Parker | Compress-Align® Fittings | 1" Nut & Sleeve x 1-1/4" Thread | 1-1/2" Hex | Straight | Brass | Pack of 10

61CA-16 by Parker | Compress-Align® Fittings | 1" Nut & Sleeve x 1-1/4" Thread | 1-1/2" Hex | Straight | Brass | Pack of 10

Save $106.62 Save $106.62
$266.55
$266.55 - $266.55
$266.55
$159.93
$159.93 - $159.93
$159.93

by Parker Hannifin
Compress-Align® Fittings:Nut and Sleeve Assembly 61CA

Package Quantity: 10 Units

Specifications for Variant SKU: 61CA-16 Parker | 10 |
Brand: Compress-Align
Series: 61CA Series
Shape (Orientation): Straight
Material(s): Brass
Product Features:
  • Self-aligning captive sleeve
  • 2-piece fitting – Less inventory
  • Visible inspection before and after installation
  • 1/8” – 1” Sizes
  • No flaring, soldering or other tube preparation
  • Forged and extruded shapes
Markets:
  • Industrial
  • Packaging
  • Pneumatic
  • Printing
  • Chemical
Applications:
  • Air lines
  • Lubrication Lines
  • Cooling lines
  • Industry
  • Machinery
  • Chemical Dispensing
  • Compressors
  • Fluid transfer
Specification:
Pressure Range: See Chart Below
Temperature Range: -65° to +250° F (- 53.8° to +121.1° C)
Compatible Tubing:
  • Copper
  • Aluminum
  • Thermoplastic tubing
  • TFE, FEA, PFA
Part Number Tube Size Straight Thread Hex (C) D L
61CA-2 1/8" 5/16"-24 3/8" .130" .36"
61CA-3 3/16" 3/8"-24 7/16" .194" .38"
61CA-4 1/4" 7/16"-24 1/2" .255" .40"
61CA-5 5/16" 1/2"-24 9/16" .318" .45"
61CA-6 3/8" 9/16"-24 5/8" .382" .45"
61CA-8 1/2" 11/16"-20 13/16" .507" .50"
61CA-10 5/8" 13/16"-18 15/16" .632" .53"
61CA-12 3/4" 1"-18 1-3/16" .760" .56"
61CA-14 7/8" 1-1/8"-18 1-3/8" .885" .68"
61CA-16 1" 1-1/4"-18 1-1/2" 1.012" .63"
