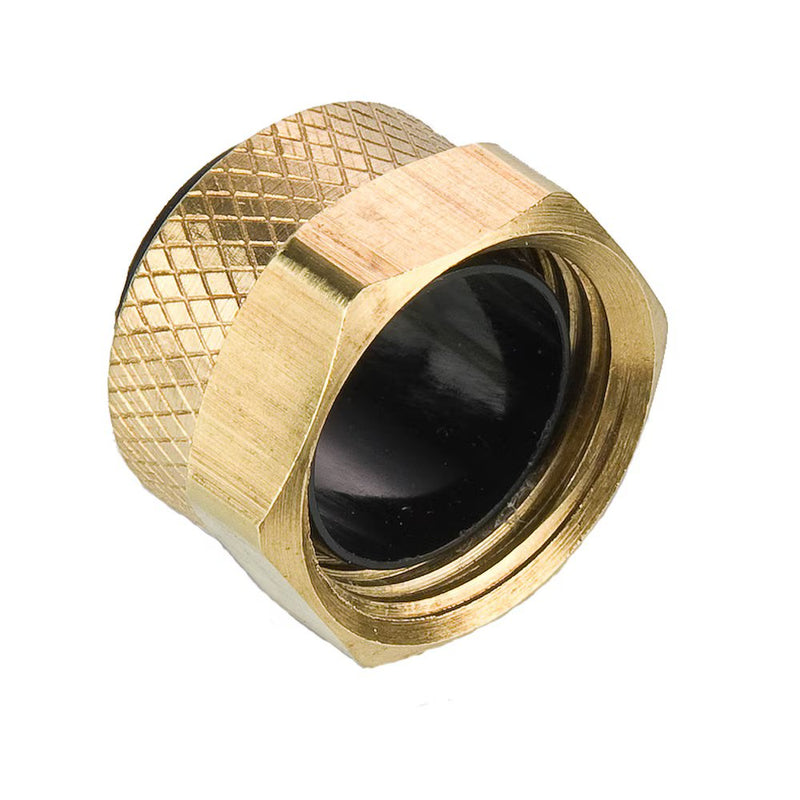

61P-6 by Parker | Poly-Tite Fittings | 3/8" Tube Size Nut x 1/2" Thread | 9/16" Hex | Straight | Brass | Pack of 100

61P-6 by Parker | Poly-Tite Fittings | 3/8" Tube Size Nut x 1/2" Thread | 9/16" Hex | Straight | Brass | Pack of 100

Save $27.43 Save $27.43
$215.43
$215.43 - $215.43
$215.43
$188.00
$188.00 - $188.00
$188.00

by Parker Hannifin
Poly-Tite Fittings:Nut and Plastic Sleeve Assembly 61P

Package Quantity: 100 Units

Specifications for Variant SKU: 61P-6 Parker | 100 |
Series: 61P Series
Shape (Orientation): Straight
Material(s): Brass
Special Properties: Silicone Free
Product Features:
  • Self aligning captive sleeve
  • Built-in tube support
  • Knurled nuts for hand tightening
  • Plastic and brass sleeves available
  • Chrome plated and stainless steel side latch couplers available
Markets:
  • Dental
  • Packaging
  • Machine Tools
  • Car Wash
  • Printing
Applications:
  • Pneumatic Systems
  • Water Lines
  • Dental Equipment
Specification:
Pressure Range: Up to 150 PSI (10.3 bar)
Temperature Range: 0° to +150° F (-17.7° to +65.5° C)
O-Rings: Buna N on chrome plated couplers Fluorocarbon on Stainless Steel couplers
Compatible Tubing:
  • Polyethylene
  • Nylon
  • Polypropylene
  • Vinyl
Part Number Tube Size Straight Thread Hex (C) D L
61P-4 1/4" 3/8"-24 7/16" .261" .38"
61P-5 5/16" 7/16"-24 1/2" .321" .34"
61P-6 3/8" 1/2"-24 9/16" .380" .38"
61P-8 1/2" 11/16"-20 3/4" .541" .44"
