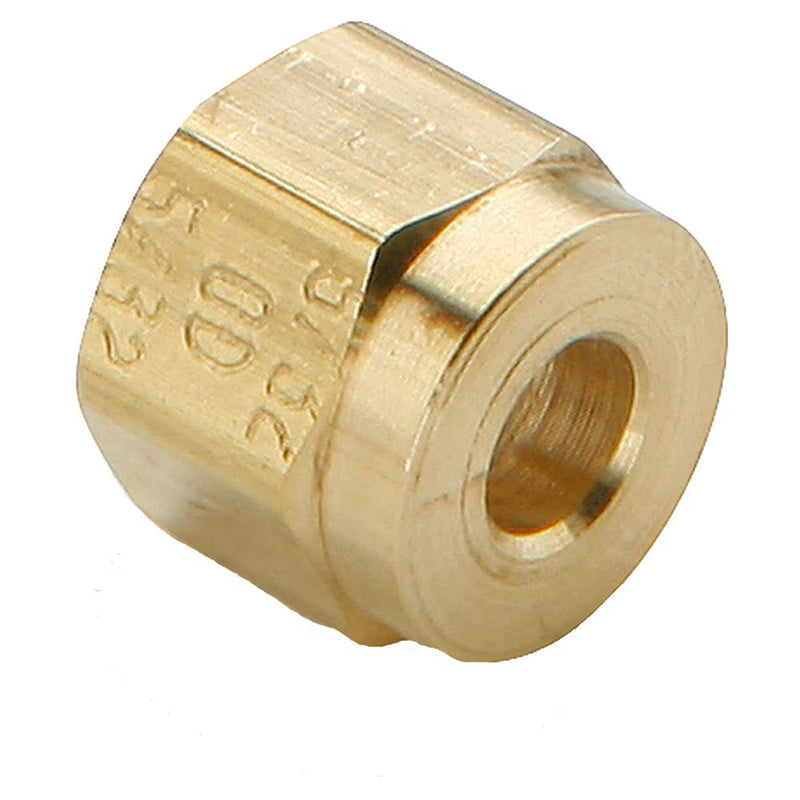

61TF-5/32 by Parker | Transmission Fittings | 5/32" Nut | 3/8" Hex | .32" Length | Brass | Pack of 50

Save $71.67

$179.18

$179.18 - $179.18

$179.18

$107.51

$107.51 - $107.51

$107.51

by Parker Hannifin
Transmission Fittings:Nut 61TF

Package Quantity: 50 Units

Specifications for Variant SKU: 61TF-5/32 Parker \| 50 \|
Series:	61TF Series
Shape (Orientation):	No Orientation
Material(s):	Brass

Product Features:	Brass Body D.O.T. Approved with Staked in Tube Support 3/16” & 5/32” Tube sizes Slotted Sleeve Nickel Plated Versions Available for Bio-diesel
Markets:	Heavy Duty Truck
Applications:	Air Shift Transmissions Seat Controls Dash Controls
Specification:
Pressure Range:	Up to 150 PSI (10.3 bar)
Temperature Range:	-40° to +200° F (-40° to +93.3° C)
Compatible Tubing:	SAE J844 Type A & B nylon tubing


Part Number	Tube Size	D	L	Straight Thread	Hex (C)
61TF-2	1/8"	.133"	.32"	5/16"-24	3/8"
61TF-5/32	5/32"	.163"	.32"	5/16"-24	3/8"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
