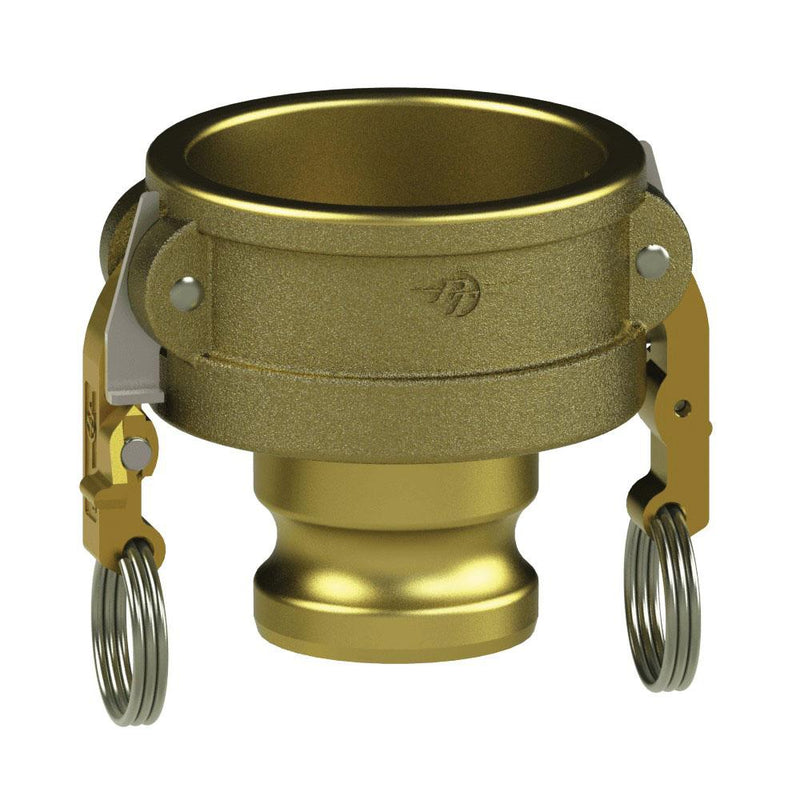

62263020L2 (30CX20A SLII) by PT-Coupling | STA-LOK® II Reducing Cam & Groove Adapter | Type CXA | Short | 3" Coupler x 2" Adapter | Brass/SLB | Buna-N Seal

62263020L2 (30CX20A SLII) by PT-Coupling | STA-LOK® II Reducing Cam & Groove Adapter | Type CXA | Short | 3" Coupler x 2" Adapter | Brass/SLB | Buna-N Seal

Save $139.96 Save $139.96
$377.08
$377.08 - $377.08
$377.08
$237.12
$237.12 - $237.12
$237.12

PT Coupling
STA-LOK® II Reducing Cam & Groove (Camlock) Adapter | Type CXA | Short | Coupler x Adapter | Brass/SLB | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Specifications for Variant SKU: 62263020L2 PT-Coupling
Series: STA-LOK II
Shape (Orientation): Straight
Cam Type: Other
Ends Configuration: 3in Female Cam & Groove, 2in Male Cam & Groove
Material(s): Brass
Seal Material(s): Buna-N/Nitrile
Overview:
  • STA-LOK® II is a passive locking feature that automatically locks the handle into place, if it is fully closed. To open the handles there are manual quick release levers. Proper use of this mechanism can help prevent spills by keeping the cam arms from opening under adverse conditions, such as high vibrations, pulsing, wear, and hazardous materials. STA-LOK® II couplers meet the Coast Guard ASTM 1122-87 specifications for Quick Disconnect Couplers.
Features & Applications:
  • SLB cam arms are made of Brass.
  • Pins, rings & the lock plate in STA-LOK® II couplings are 300 series Stainless Steel.
  • Good corrosion resistance, less expensive than stainless steel. Softer and easier to thread than stainless steel and forms tight seals.
  • Ideal for use with water. Can also be used with hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA
Part
Name		 Item # Coupler
Size		 Adapter
Size		 Max. Allowable
Working Press.
(PSI)*
30CX20A SLII 62263020L2 3" 2" 200 PSI
40CX30A SLII 62264030L2 4" 3" 150 PSI
60CX30A SLII 62266030L2 6" 3" 75 PSI
60CX40A SLII 62266040L2 6" 4" 75 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
