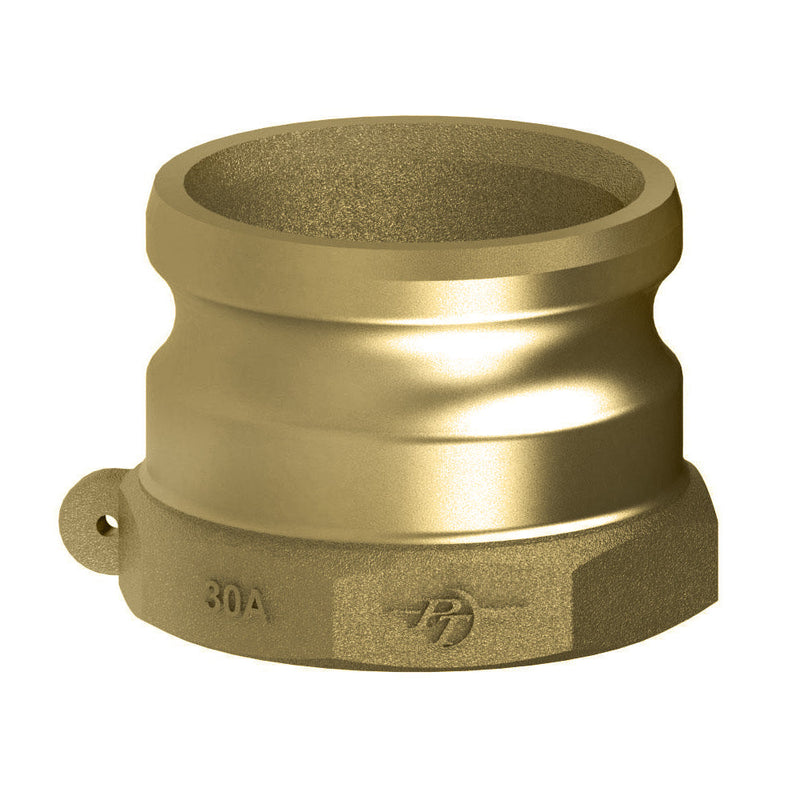

62372500 (25AFH) by PT-Coupling | Cam & Groove Adapter | Type AFH | 2-1/2" Adapter x 2-1/2" Female Fire Hose (NH) Thread | Brass | EPDM Seal

Save $104.77

$282.25

$282.25 - $282.25

$282.25

$177.48

$177.48 - $177.48

$177.48

PT Coupling
Cam & Groove (Camlock) Adapter | Type AFH | Adapter x Female Fire Hose (NH) Thread | Brass | EPDM Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 62372500 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type A
Ends Configuration:	2-1/2in Male Cam & Groove, 2-1/2in Female NST
Material(s):	Brass
Seal Material(s):	EPDM

Features & Applications:
Good corrosion resistance, less expensive than stainless steel. Softer and easier to thread than stainless steel and forms tight seals. Ideal for use with water. Can also be used with hydraulic oil, coolants, gasoline, and petroleum products. Comes standard with EPDM NH Thread Gasket Made in the USA


Part Name	Item #	Adapter Size	Female Fire Hose Thread (NH) Size	Overall Length (C)	Inside Diameter (E)	Across Corners (F)	Chain Lug Extension (G)	Max. Allowable Working Press. (PSI)*
25AFH	62372500	2-1/2"	2-1/2"	2.75"	2.14"	3.49"	0.27"	200 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
