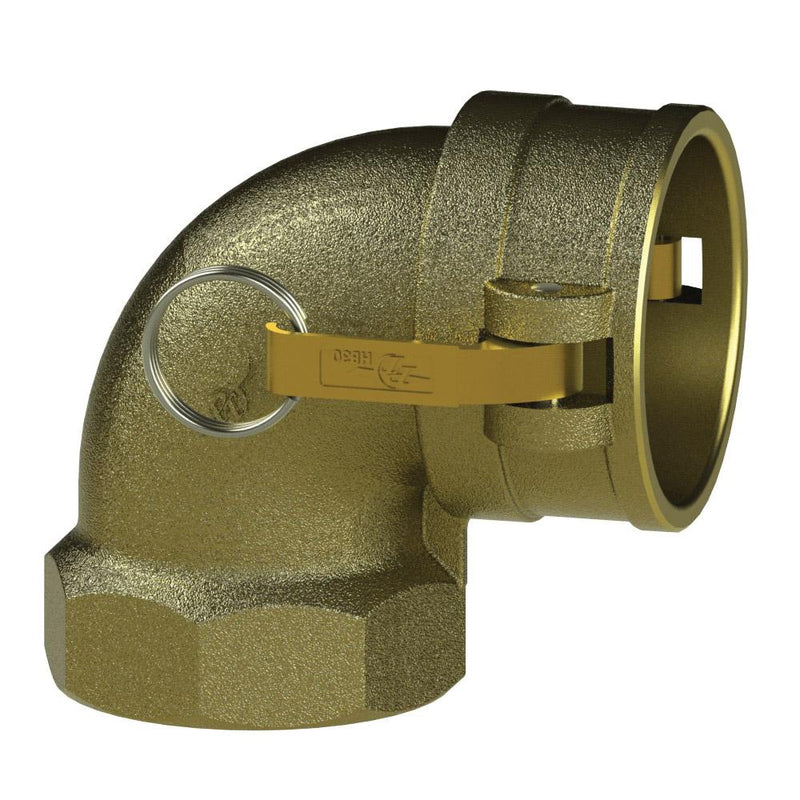

62481200 (12LD) by PT-Coupling | Cam & Groove Adapter | Type LD | 90° Elbow | 1-1/4" Coupler x 1-1/4" Female NPT | Brass | Buna-N Seal

Save $61.55

$165.80

$165.80 - $165.80

$165.80

$104.25

$104.25 - $104.25

$104.25

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 62481200 PT-Coupling
Shape (Orientation):	90 Degree Elbow
Cam Type:	Type D
Ends Configuration:	1-1/4in Female Cam & Groove, 1-1/4in Female NPT
Material(s):	Brass
Seal Material(s):	Buna-N/Nitrile

Features & Applications:
Good corrosion resistance, less expensive than stainless steel. Softer and easier to thread than stainless steel and forms tight seals. Ideal for use with water. Can also be used with hydraulic oil, coolants, gasoline, and petroleum products. Made in the USA

Part Name	Item #	Orientation	Coupler Size	Female NPT Thread	Max. Allowable Working Press. (PSI)*
10LD	62481000	90°	1"	1"	250 PSI
12LD	62481200	90°	1-1/4"	1-1/4"	250 PSI
15LD	62481500	90°	1-1/2"	1-1/2"	250 PSI
20LD	62482000	90°	2"	2"	250 PSI
25LD	62482500	90°	2-1/2"	2-1/2"	200 PSI
30LD	62483000	90°	3"	3"	200 PSI
40LD	62484000	90°	4"	4"	150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
