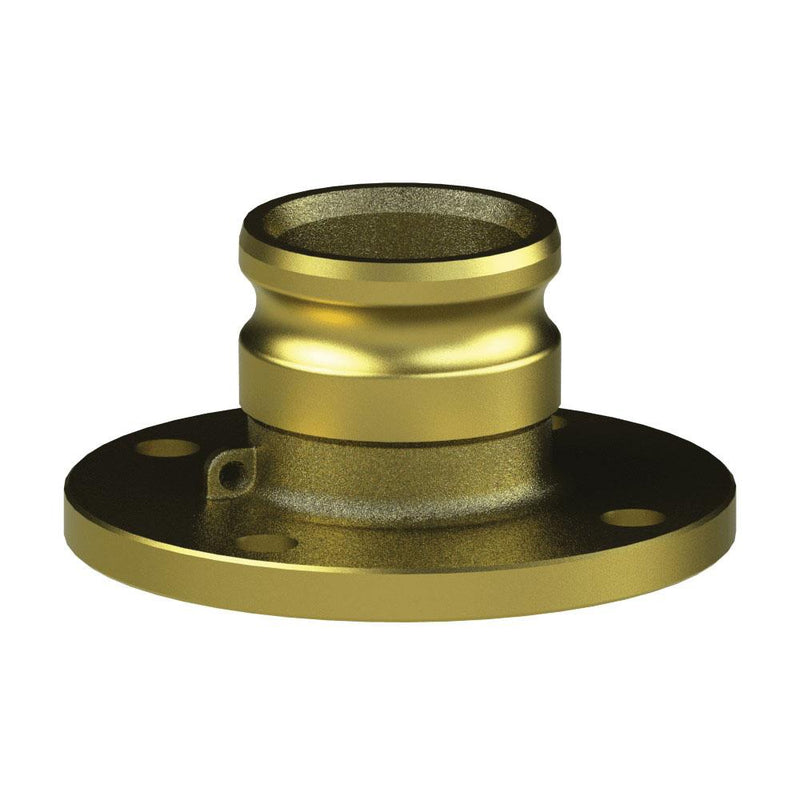

62524000 (PF40A) by PT-Coupling | Cam & Groove Adapter | Type PFA | 4" Adapter x 4" 150# Pipe Flange | Brass

62524000 (PF40A) by PT-Coupling | Cam & Groove Adapter | Type PFA | 4" Adapter x 4" 150# Pipe Flange | Brass

Save $287.04 Save $287.04
$773.28
$773.28 - $773.28
$773.28
$486.24
$486.24 - $486.24
$486.24

PT Coupling
Cam & Groove (Camlock) Adapter | Type PFA | Adapter x 150# Pipe Flange | Brass

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Specifications for Variant SKU: 62524000 PT-Coupling
Shape (Orientation): Straight
Cam Type: Other
Ends Configuration: 4in Male Cam & Groove, 4in 150# Flange
Material(s): Brass
Features & Applications:
  • Good corrosion resistance, less expensive than stainless steel. Softer and easier to thread than stainless steel and forms tight seals.
  • Ideal for use with water. Can also be used with hydraulic oil, coolants, gasoline, and petroleum products.
  • Pipe Flange bolt pattern conforms to ANSI B16.5 Class 150.
  • Stainless Steel and Carbon Steel Flanges are raised face. Other materials are supplied with flat face flanges.
  • Made in the USA
Part
Name		 Item # Adapter
Size		 Flange
Size		 Overall
Length
(C)		 Inside
Diameter
(E)		 Outside
Diameter
(F)		 Bolt Hole
Diameter
(J)		 Number
of Holes
(K)		 Bolt Circle
Diameter
(L)		 Max. Allowable
Working Press.
(PSI)*		 Weight
PF20A 62522000 2" 2" 3.50" 1.72" 6.00" 0.75" 4 4.75" 250 PSI 7.035 lbs.
PF30A 62523000 3" 3" 3.69" 2.78" 7.50" 0.75" 4 6.00" 200 PSI 10.53 lbs.
PF40A 62524000 4" 4" 4.00" 3.78" 9.00" 0.75" 8 7.50" 150 PSI 16.402 lbs.
PF80A 62528000 8" 8" 5.38" 7.80" 13.5" 0.88" 8 11.75" 50 PSI -

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
