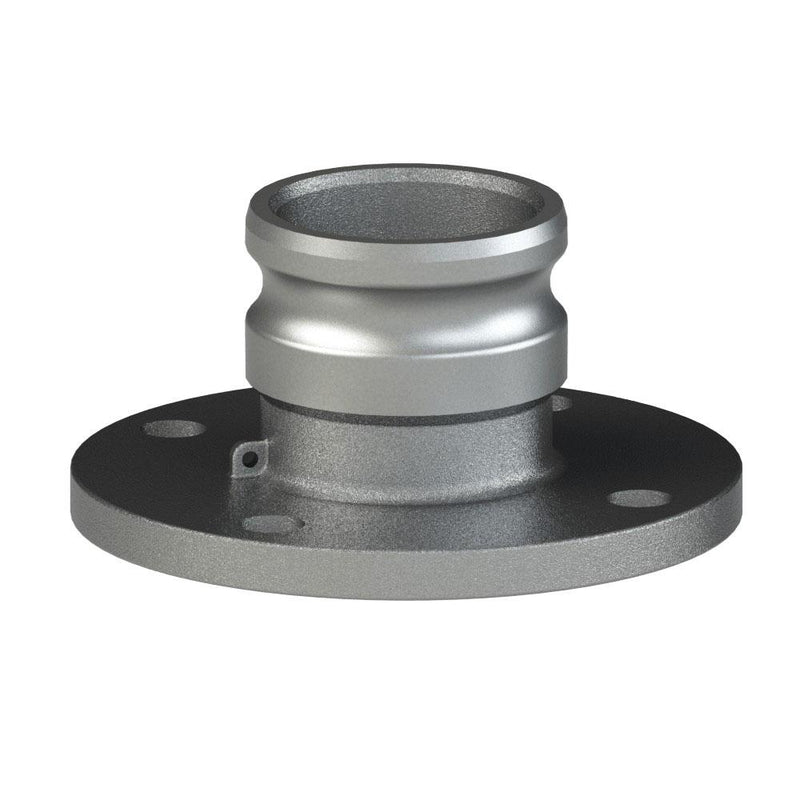

62526080 (PF60X80A) by PT-Coupling | Reducing Cam & Groove Adapter | Type PFA | 6" Adapter x 8" 150# Pipe Flange | Carbon Steel

62526080 (PF60X80A) by PT-Coupling | Reducing Cam & Groove Adapter | Type PFA | 6" Adapter x 8" 150# Pipe Flange | Carbon Steel

Save $441.53 Save $441.53
$1,189.45
$1,189.45 - $1,189.45
$1,189.45
$747.92
$747.92 - $747.92
$747.92

PT Coupling
Cam & Groove (Camlock) Adapter | Type PFA | Adapter x 150# Pipe Flange | Carbon Steel

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Specifications for Variant SKU: 62526080 PT-Coupling
Shape (Orientation): Straight
Cam Type: Other
Ends Configuration: 6in Male Cam & Groove, 8in 150# Flange
Material(s): Carbon Steel
Features & Applications:
  • Pipe Flange bolt pattern conforms to ANSI B16.5 Class 150.
  • Stainless Steel and Carbon Steel Flanges are raised face. Other materials are supplied with flat face flanges.
  • Made in the USA
Part
Name		 Item # Adapter
Size		 Flange
Size		 Overall
Length
(C)		 Inside
Diameter
(E)		 Outside
Diameter
(F)		 Bolt Hole
Diameter
(J)		 Number
of Holes
(K)		 Bolt Circle
Diameter
(L)		 Max. Allowable
Working Press.
(PSI)*		 Weight
PF30A 74523000 3" 3" 3.69" 2.78" 7.50" 0.75" 4 6.00" 200 PSI 8.27 lbs.
PF40A 74524000 4" 4" 4.00" 3.78" 9.00" 0.75" 8 7.50" 150 PSI 12.148 lbs.
PF60X80A 62526080 6" 8" 4.50" 5.56" 11.00" 0.88" 8 9.50" 50 PSI -

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
