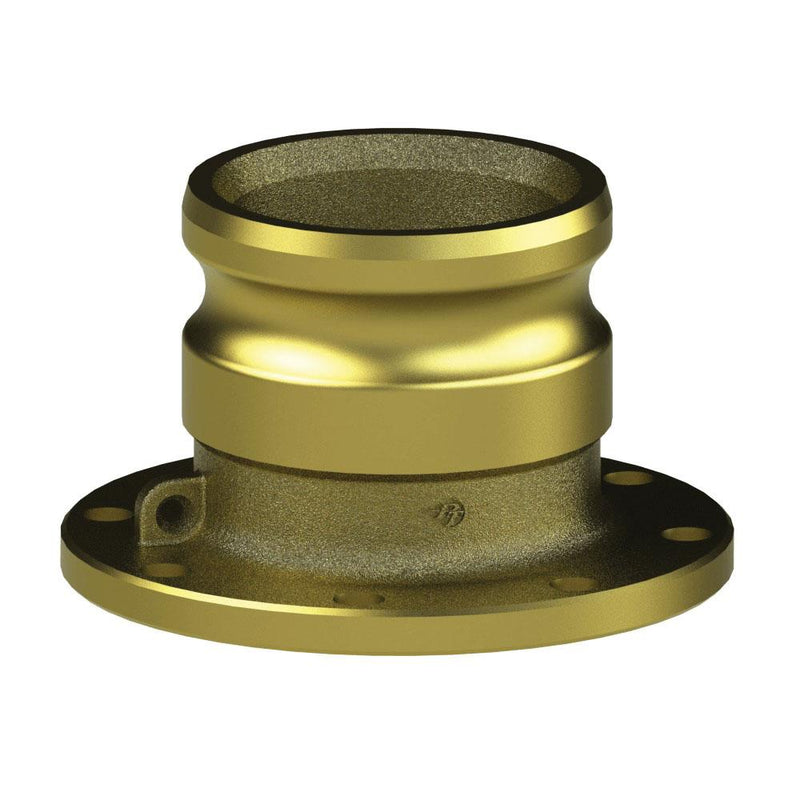

62562500 (TTF25A) by PT-Coupling | Petroleum Handling Cam & Groove Adapter | Type TTFA | 2-1/2" Adapter x 2-1/2" TTMA Flange | Brass

Name: 62562500 (TTF25A) by PT-Coupling | Petroleum Handling Cam & Groove Adapter | Type TTFA | 2-1/2" Adapter x 2-1/2" TTMA Flange | Brass
Brand: PT-Coupling
SKU: 62562500 PT-Coupling
Price: 324.25 USD
Availability: InStock

Save $191.42

$515.67

$515.67 - $515.67

$515.67

$324.25

$324.25 - $324.25

$324.25

PT Coupling
Petroleum Handling Cam & Groove (Camlock) Adapter | Type TTFA | Adapter x TTMA Flange | Brass

PT Coupling’s petroleum handling fittings support all stages of fuel production and transport, from refining to tank trucks. Also compatible with bio-fuel applications.

Made in the USA.

Specifications for Variant SKU: 62562500 PT-Coupling
Series:	Petroleum Handling
Shape (Orientation):	Straight
Cam Type:	Other
Ends Configuration:	2-1/2in Male Cam & Groove, 2-1/2in TTMA Flange
Material(s):	Brass

Overview:
PT Coupling's petroleum handling fittings are used in all phases of petroleum manufacturing, transportation and logistics. They serve important roles in fuel transportation, from refining applications to tank trucks, and much more. They are also suited to work with the emerging bio-fuel industry.
Features & Applications:
Tank Truck Flanges conform to (TTMA) Truck Trailer Manufacturers Assoc. standards. Good corrosion resistance, less expensive than stainless steel. Softer and easier to thread than stainless steel and forms tight seals. Ideal for use with water. Can also be used with hydraulic oil, coolants, gasoline, and petroleum products. Made in the USA


Part Name	Item #	Adapter Size	Flange Size (TTMA)	Overall Length (C)	Inside Diameter (E)	Outside Diameter (F)	Bolt Hole Diameter (J)	Number of Holes (K)	Bolt Circle Diameter (L)	Max. Allowable Working Press. (PSI)*
TTF25A	62562500	2-1/2"	2-1/2"	-	-	-	-	-	-	200 PSI
TTF30A	62563000	3"	3"	3.38"	2.80"	5.63"	0.44"	8	4.88"	200 PSI
TTF40A	62564000	4"	4"	3.35"	3.78"	6.63"	0.44"	8	5.88"	150 PSI

* Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
