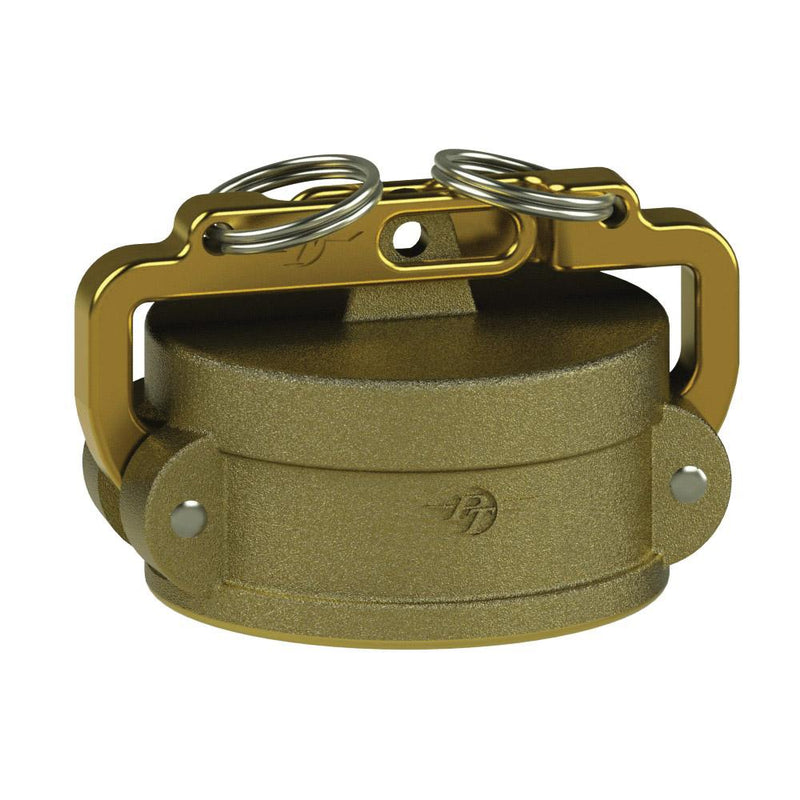

62800025 (25VL) by PT-Coupling | Cam & Groove Dust Cap | with Locking Cam Arms | Type VL | 2-1/2" Coupler | Brass

Save $71.17

$191.72

$191.72 - $191.72

$191.72

$120.55

$120.55 - $120.55

$120.55

PT Coupling
Cam and Groove (Camlock) Dust Cap with Locking Cam Arms | Type VL | Brass

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 62800025 PT-Coupling
Cam Type:	Type DC
Ends Configuration:	2-1/2in Female Cam & Groove

Overview:
PT Quick Connect/Disconnect Couplings provide for quick connecting and disconnecting by means of the camming action. This camming action allows pipe and hose connections to be made without the need of hand tools or difficult threaded connections. Cam and groove couplings are made up of two parts, male (adapter/plug) and female (coupler/socket) that work together. The male adapter is simply inserted into the female coupler until contact is made with the gasket. Both cam arms on the coupler are then pressed down/closed simultaneously to produce a uniform gasket compression between the seal surfaces. This seal is created because the cam arms of the female coupler fit snugly against the groove of the male adapter. A positive seal requires that the surfaces on the gasket seat, the adapter face, and the gasket are smooth and uncontaminated. Also cam arms must be in the full closed position for proper locking of the coupling. To disconnect both arms must be lifted / opened simultaneously to release the seal and release the connection.
Features & Applications:
Chain Lug diameter is .25" or greater. Dust caps with Brass cam arms are priced without pull rings. Pull rings are not included in the 4, 5, and 6 inch Brass XL Locking Cam Assembly Good corrosion resistance, less expensive than stainless steel. Softer and easier to thread than stainless steel and forms tight seals. Ideal for use with water. Can also be used with hydraulic oil, coolants, gasoline, and petroleum products. Couplings not interchangeable in the industry are sizes 8" through 12". Made in the USA


Part Name	Item #	Coupler Size	O. D. with Cam Arms Extended (A)	Outside Diameter (B)	Overall Length (C)	Chain Lug Extension (G)	Engagement Length	Max. Allowable Working Press. (PSI)*
15VL	62800015	1-1/2"	7.16"	3.56"	1.96"	0.86"	1.48"	250 PSI
20VL	62800020	2"	7.54"	3.94"	2.25"	0.76"	1.75"	250 PSI
25VL	62800025	2-1/2"	8.03"	4.43"	2.28"	0.90"	1.75"	200 PSI
30VL	62800030	3"	9.56"	5.46"	2.27"	1.03"	1.84"	200 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
