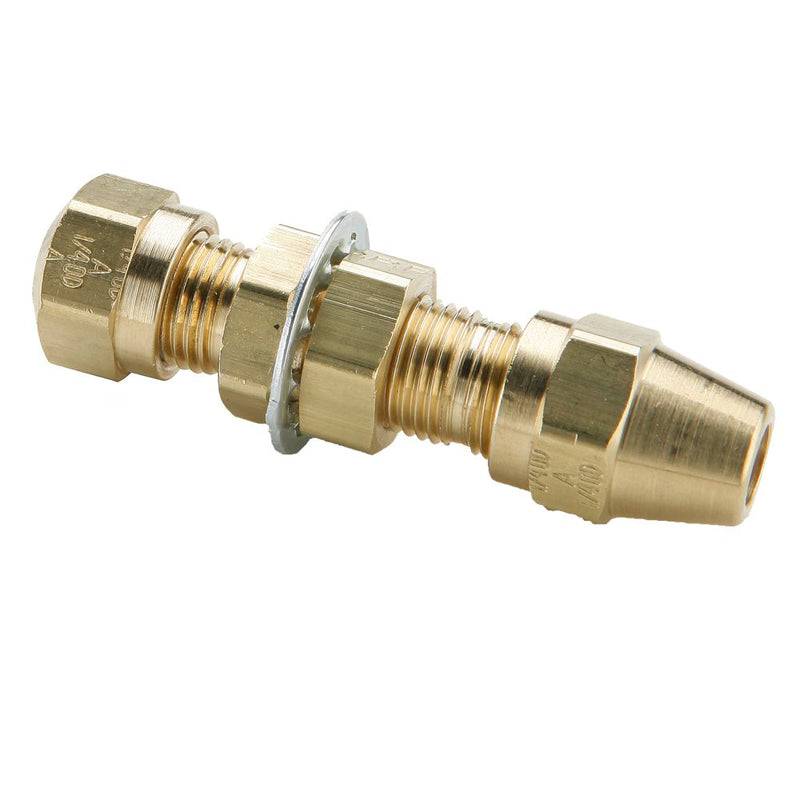

62ANBH-4 by Parker | Air Brake–NTA® Fittings | Bulkhead Union | 1/4" Tube Size x 7/16" Thread | 9/16" Hex B | 9/16" Hex C | 2.28" Length | Straight | Brass | Pack of 25

62ANBH-4 by Parker | Air Brake–NTA® Fittings | Bulkhead Union | 1/4" Tube Size x 7/16" Thread | 9/16" Hex B | 9/16" Hex C | 2.28" Length | Straight | Brass | Pack of 25

Save $108.77 Save $108.77
$754.10
$754.10 - $754.10
$754.10
$645.33
$645.33 - $645.33
$645.33

by Parker Hannifin
Air Brake–NTA® Fittings:Bulkhead Union 62ANBH

Package Quantity: 25 Units

Specifications for Variant SKU: 62ANBH-4 Parker | 25 |
Brand: Air Brake–NTA®
Series: 62ANBH Series
Shape (Orientation): Straight
Material(s): Brass
Product Features:
  • Brass Body
  • Meets D.O.T. FMVSS571.106 Performance
  • Meets functional Requirements SAE J246 & SAE J1131
  • Pre-applied Thread Sealant
  • Nickel Plated Versions Available for Bio-diesel
Markets:
  • Heavy Duty Truck
  • Trailer
  • Mobile
Applications:
  • Air Brakes
  • Air Tanks
  • Air Ride
  • Sliders
  • Tire Inflation
  • Primary & Secondary Air Lines
  • Cab Controls
Specification:
Pressure Range: Up to 150 PSI (10.3 bar)
Temperature Range: -40° to +200° F (-40° to +93.3° C)
Compatible Tubing:
  • SAE J844 Type A & B nylon tubing
Part Number Tube Size Straight Thread Hex (B) Hex (C) L M Flow Diameter (D) Bulkhead Hole Diameter
62ANBH-4 1/4" 7/16"-24 9/16" 9/16" 2.28" 1.38" .137" 7/16"
62ANBH-6 3/8" 17/32"-24 11/16" 3/4" 2.97" 1.62" .217" 17/32"
62ANBH-8 1/2" 11/16"-20 13/16" 1" 3.36" 1.88" .338" 11/16"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
